Description

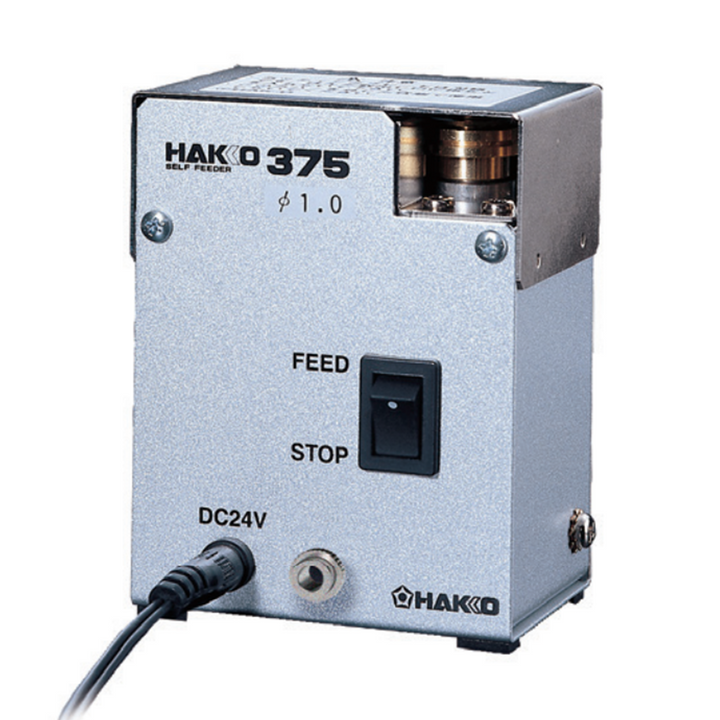

- Compact. space-saving automatic solder feeder.
- Reduces the splash of solder and flux by cutting a v-groove onto the solder surface.
- Solder feed amount can be controlled by turning the switch on or off.
- Please note that 375-01. 375-02. 375-03 and 375-04 differ in specifications of usable solder diameter.
- Please refer to the User Manual below for more detailed specifications.
| Name | Specifications |
| 375-1 | 0.5mm |
| 375-2 | 0.6mm |
| 375-3 | 0.8mm |
| 375-4 | 1mm |
Features
Optimal for minimizing solder and flux splash
Solder feeding equipment with V-grooving function for superior cost performance
Minimize solder and flux splash
- As shown below. when solder is cut with a V-groove it enables the release of gas pressure generated by the flux. thereby suppressing splash. However. because the V-groove exposes the flux to outside air the solder cannot be stored for a long period of time.
- When using solder with the HAKKO 375. you can groove the solder that you require.
Specifications
Model No. 375
Rating : DC 24 V 75 mA
Solder feed speed: 27mm/sec.
Usable solder diameter: Φ0.3. Φ0.5. Φ0.6. Φ0.8. Φ1.0mm
Dimensions: 78(W)×98(H)×56(D)mm
Weight: 0.59kg
AC Adapter
Output voltage: DC 24 V
Accessories
| Part No. | Product |
| B1649 |
Foot Switch Connection cord length: Approximately 135 cm When using the foot switch. switching is not possible on the main device. |
| B2763 |
Hand Switch Connection cord length: Approximately 100 cm When using the hand switch. switching is not possible on the main device. |
Additional Information
| Style |
375-01, 375-02, 375-03, 375-04 |
|---|
V-Groove Maker (375-1 to 375-4)
