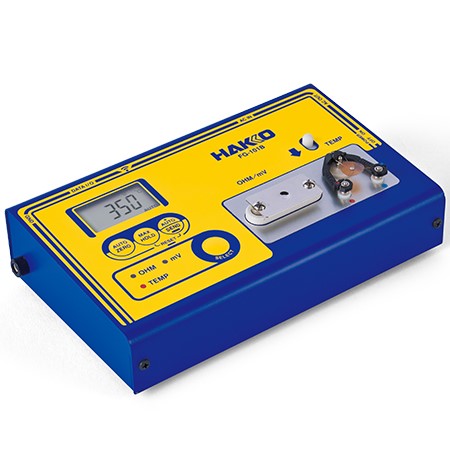

FG-101B Soldering Tester (Thermometer) with Calibration

• Soldering iron tester for measurement of tip temperature. leak voltage. and tip to ground resistance
• Human error-free operation
• Long life sensor AS5000 (with certificate of conformance) is equipped as standard.
• Comes with calibration report

Features

Soldering iron tester for measurement of tip temperature. leak voltage. and tip to ground resistance

• For the daily maintenance of soldering station Control of "tip temperature". "leak voltage". and "tip to ground resistance" is required for a grounded soldering station for electronic components.

Human error-free operation

1. AUTO HOLD function The measurement will end automatically when the displayed tip temperature is stabilized. Individual differences in temperature measurement can be minimized.
2. Data send function (infrared) Measurement result can be sent to IoT capable soldering station. such as FN-1010. and be recorded automatically. Human errors in manual recording can be eliminated.

Long life sensor AS5000 (with certificate of conformance) is equipped as standard.

• Lasts 30 times longer than a conventional sensor based on our in-house test
• Save troubles of sensor replacements and enhance stable measurement for a long time.

MAX HOLD Function (Temperature measurement)

Max measured tip temperature will be displayed. This function can be useful for quality control of components and P.W.B.

Temperature Measurement Count Function

Number of tip temperature measurement will be automatically counted. This function can be useful for control of changing sensor.

AUTO ZERO Function

The zero point error of measuring instruments can be corrected by simply pressing the AUTO ZERO button and waiting for the display to return to normal.

Temperature probe

Use of a temperature probe makes it possible to measure the temperature of molten solder in a solder pot and hot air.

Specifications

• Power consumption: 3.2 W (100 V). 3.6 W (100-110 V). 3.2 W (120 V). 3.6 W (220-240 V)

• Temperature resolution: 1℃
• Temperature measurement range: 0 to 700℃*
• Temperature accuracy: ±3℃ (300 to 600℃) / ±5℃ (other than above)
• Temperature sensor: K (CA) type thermocouple
• Voltage resolution: 0.1 mV
• Voltage measurement range: 0 to 40 mV
• Voltage accuracy: ±(5% of reading + 1 digit)
• Resistance resolution: 0.1 Ω
• Resistance measurement range: 0 to 40 Ω
• Resistance accuracy: ±(5% of reading + 1 digit)
• Display: LCD - 3 1/2 digits
• Operating environment: Ambient temperature / Humidity range : 0 to 40ºC. max.80% RH (without condensation)
• Environmental conditions: Applicable rated pollution degree 2 (According to IEC/UL 61010-1)
• Dimensions: 211 (W) × 53 (H) × 126 (D) mm
• Weight 0.95 kg

*Temperature sensor can only be used to measure temperatures below 500°C. To measure higher temperatures. use an applicable temperature probe.
