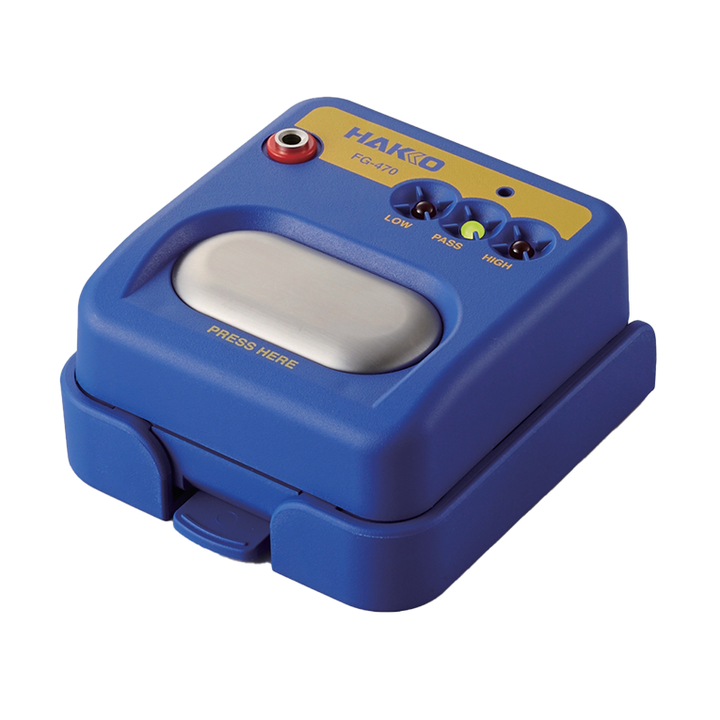

FG-470 Static Control Wrist Strap Tester

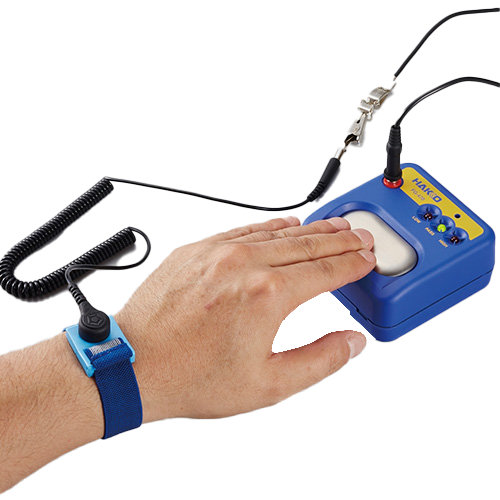

• Quick and secure test on the function of wrist strap as being worn
• Connection patterns to choose depending on wrist straps

Features

User-friendly design

• A user-friendly pad secures pass/fail judgement on a wrist strap.
• A banana jack on the front panel makes it easy to plug and unplug a wrist strap.

Indication of test result by LED and buzzer

• Highly visible LED lamps and buzzer will indicate test result.
• Results: Low. Pass or High
• *Buzzer sounds only for "PASS".

Dedicated holder included
A mounting holder makes it easy to plug and unplug with one hand. No tool is required to remove the unit. The unit can also be used without the holder for portability.

Connection patterns
There are several connection patterns to choose depending on wrist straps.

Specifications

The Hakko FG-470 should be calibrated regularly. Kindly reach out to your local sales representatives for more details.

• Power supply: 006P 9V dry battery (alkaline cell recommended)
• Indication: LOW R<800kΩ
• Indication: PASS 800kΩ≤R≤9MΩ
• Indication: HIGH R>9MΩ
• Battery life: Approximately 50.000times (9V alkaline)
• Grounding wire: 1m
• Operating environment: Ambient temperature/humidity range : 0 to 40ºC. max.80% RH (without condensation)
• Dimensions: 85(W)×44(H)×90(D)mm / 92(W)×48(H)×97(D)mm (with mounting holder)
• Weight: 120g / 160g (with mounting holder) - excluding battery

Accessories
