Description
Please refer to the User Manual for detailed specifications.
Features

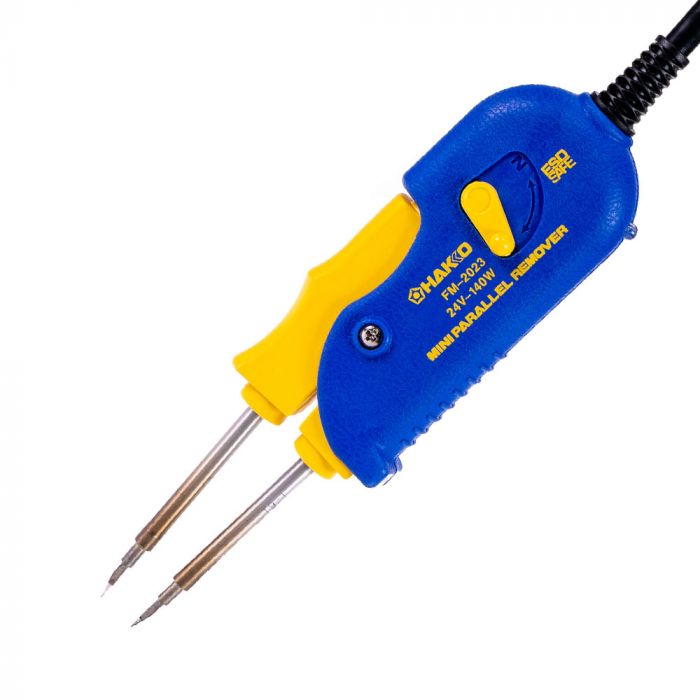

SMD MINI PARALLEL REMOVER
The Hakko FM-2023 is designed for use with small chip components as small as 0201. it enable easy removal of fine SMD chips and flat packages of up to 2mm in width. The Mini Parallel Remover has a unique feature allowing it to work as a standard or reverse action tweezer. A simple flip of a switch sets the action of the tool.
- The small grip ensures to remove the smallest chips easily.
- Can choose standard or reverse tweezer action by switch lever.
- Direct heating prevents damage to neighboring components on high density board.
- Composite type design with built-in heater
- ESD safe by design
Specifications
| Model Name | FM-2023 |
| Part Number | FM2023-04 |
| Power Consumption | 140W (24V) |
| Temperature Range | 200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy | ±10°C (±28°F) of set temperature |
| Temperature Stability | ±5°C (±9°F) at idle temperature3 |
| Tip to Ground Resistance | < 2 ohms |
| Tip to Ground Potential | < 2mV (Typical 0.6mV) |
| Cord Assembly | 1.2m (4 ft.) |
| Total Length (w/o Cord and Tip) | 75mm (3.0 in.) |
| Weight. Handpiece only (w/o cord) | 32g (1.1 oz.) |
| Weight. T9-I tip | 5g (0.18 oz.) |
| Standard tip | T9-I |

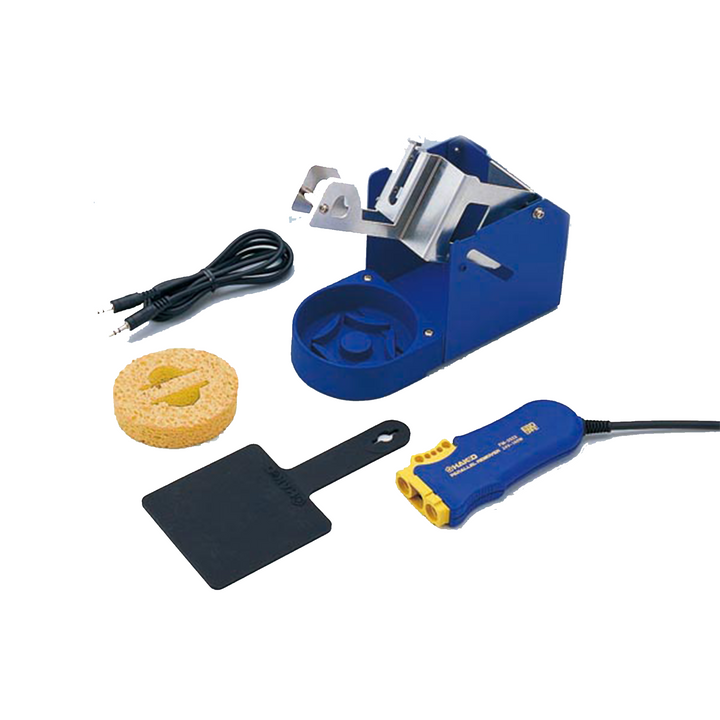

Replacement Parts
| Part Number | Product Name |
| FM2023-02 | Mini SMD Tweezers (Handpiece only) |
| B2849 | Component Bed |
| FH200-04 | Iron Holder with Cleaning Sponge. Power Save Function |
| B3412 | Iron Holder Assembly with screw. for FH200-04 |
| A1519 | Yellow Cleaning Sponge (Replaces A1536) |
| A1536 | Green Cleaning Sponge (Discontinued) |
| B3253 | Connecting Cable |
| B2300 | Heat Resistant Pad |
| 599B-02 | Tip Cleaner (with Wire Sponge) |
| 599-029 | Wire Sponge |
Additional Information
| FM-2023 |
Handpiece Only, Conversion Kit |
|---|
FM-2023 Mini SMD Hot Tweezers Handpiece / Conversion Kit
$173.00
