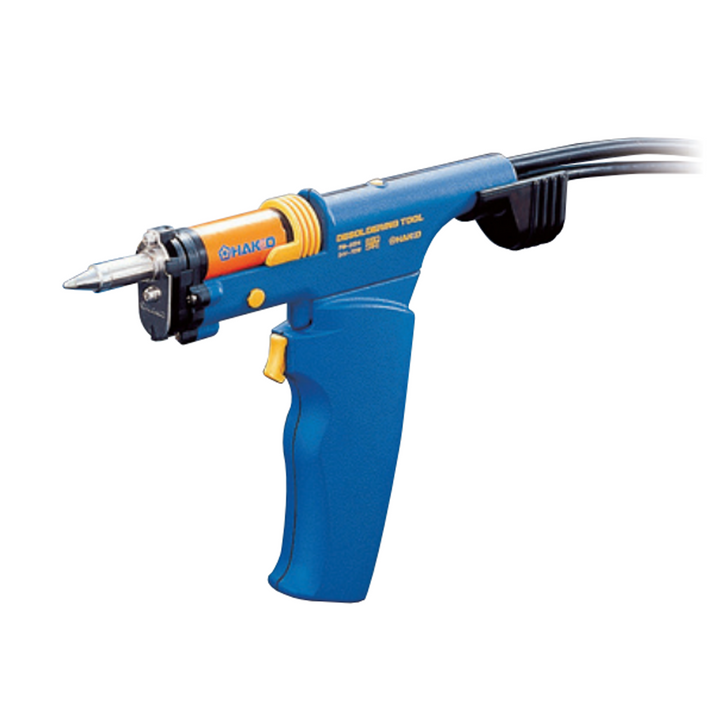

FM-2024 Desoldering Tool Handpiece / Conversion Kit

• Integrated desoldering unit equipped with nozzle with built-in heater provides excellent thermal recovery
• Nozzle can be replaced with simple one-touch operation
• Used together with an FM Series station

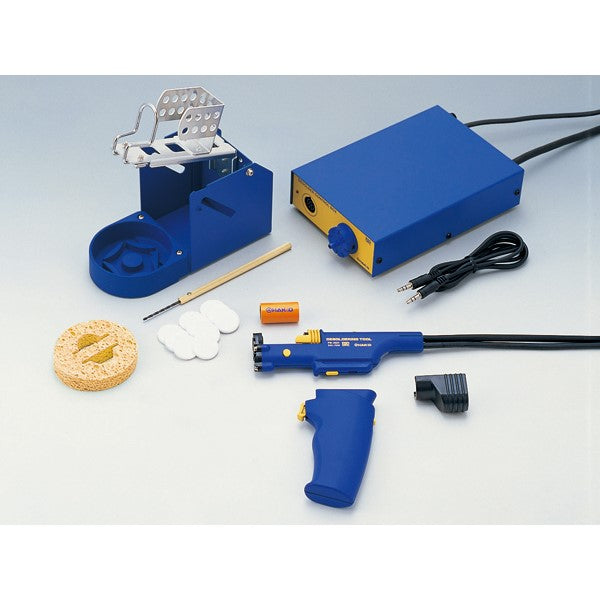

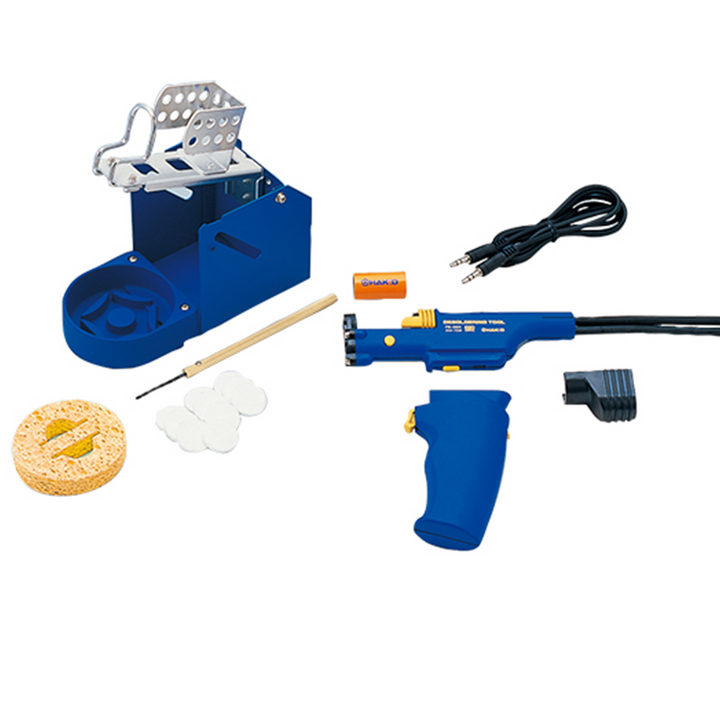

Packing List

Nozzles not included. kindly purchase separately.

Features

Choose station to suit the operation

Specifications vary by station combined.

Vacuum pump type desoldering tool

• HAKKO FM-204 Vacuum pump type
• HAKKO FM-206 (3-handpiece insertion. optional soldering. SMD rework possible)

Distribution equipment for compressed air is required.

• HAKKO FM-202 (Discontinued)
• HAKKO FM-203(2-handpiece insertion. optional soldering. SMD rework possible)
• Two power receptacles are required.
• One unit can serve dual usage of Gun/Straight configurations
• The composite nozzle ensures superior thermal recovery
• Lightweight design ESD safe by design
• Nozzle cartridge can be replaced even before the nozzle becomes cool.

Specifications

Model No. FM-2024

• Power consumption: 70W (24V)
• Temperature range: 350 to 450ºC
• Nozzle to ground resistance: <2Ω
• Nozzle to ground potential: <2mV
• Heating element: Composite heater
• Cord length: 1.2m
• Total length: 180mm (with Φ1.0mm nozzle)
• Weight: 65g (with Φ1.0mm nozzle)

* Total length and weight (w/o cord. hose)

DCB (Desolder Control Box)

• Power Consumption: 12W
• Output: 24V
• >Vacuum Generator/Vacuum Pressure: Ejector type Max. 93kPa (700mmHg)
• Suction Flow: 20L/min
• Tip to Ground Potential: < 2mV
• Applied Air Pressure: 490kPa (5.0kgf/cm2) When in use (trigger or button is pressed)
• Compressed Air Consumption: 46L/min
• Outer Dimensions: 119(W) x 45(H) x 172(D)mm
• Weight: 1.2kg

Replacement Parts

Optional Parts
