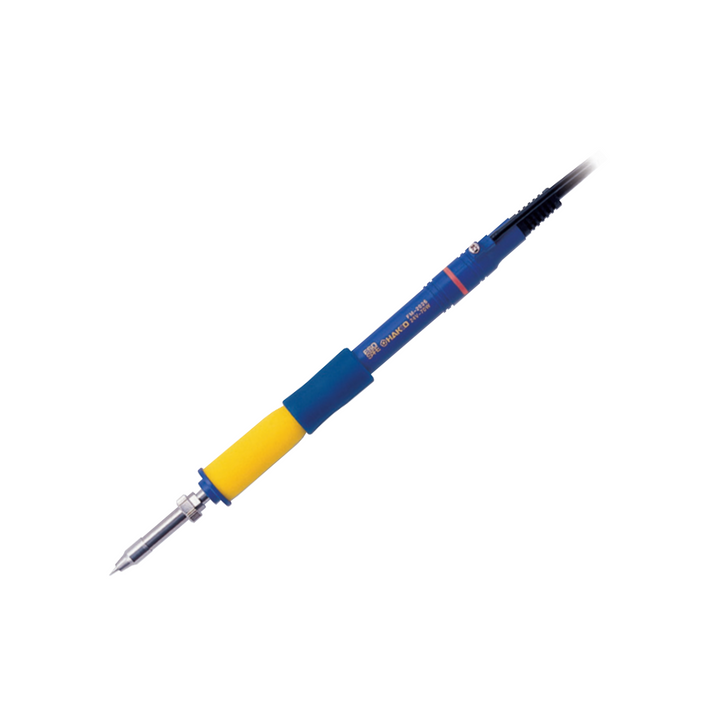

FM-2026 N2 Soldering Iron / Conversion Kit

Please refer to the User Manual for detailed specifications.

Packing List

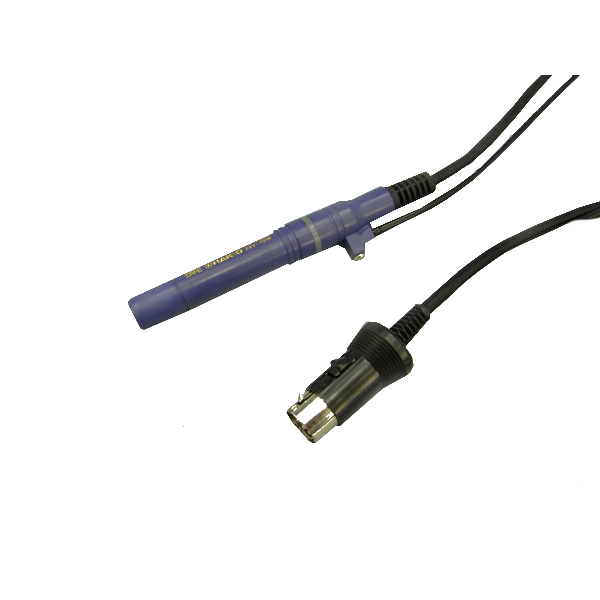

• FM2026-02: Connector assembly. Instruction manual
• FM2026-03: Sleeve cover. Sleeve assembly. Connector assembly. Retaining clip for iron holder. Instruction manual.

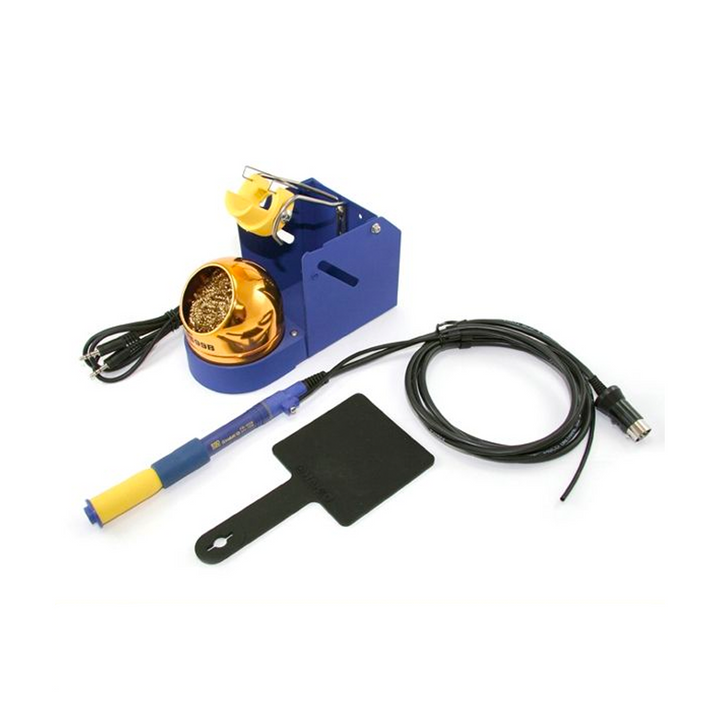

• FM2026-04: Sleeve assembly. Sleeve cover. Connector assembly. Connecting cable. Heat resistant pad. Iron holder. Cleaning wire. Instruction manual

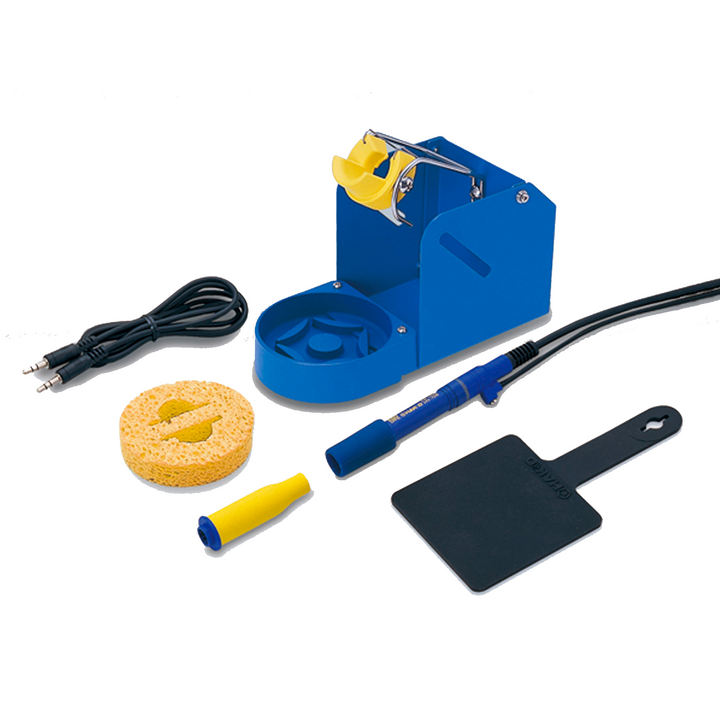

• FM2026-05: Sleeve assembly. Sleeve cover. Connector assembly. Connecting cable. Heat resistant pad. Iron holder. Cleaning Sponge. Instruction manual
• Note: All units do not include a soldering tip or nozzle assembly. Please purchase it separately.

Features

Preventing oxidation
The Nitrogen gas (N₂) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.

Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer. improving the solder wettability and spreadability. Heated N₂ gas improves solderability. and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

Preheating effect
N₂ gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

Compatible with N₂ System
Can be connected with FX-780. FX-781. FX-791 to create an N₂ System.

Specifications

• Power consumption: 70W (24V)
• Temperature range: 200 to 450ºC
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Composite heater
• Cord length: 1.2m
• Total length: 205mm (with 2.4D tip. without cord and tube)
• Weight: 45g (with 2.4D tip and nozzle assembly C. without cord and tube)
• Note: Do not set the temperature above 400ºC
