Description
Packing List

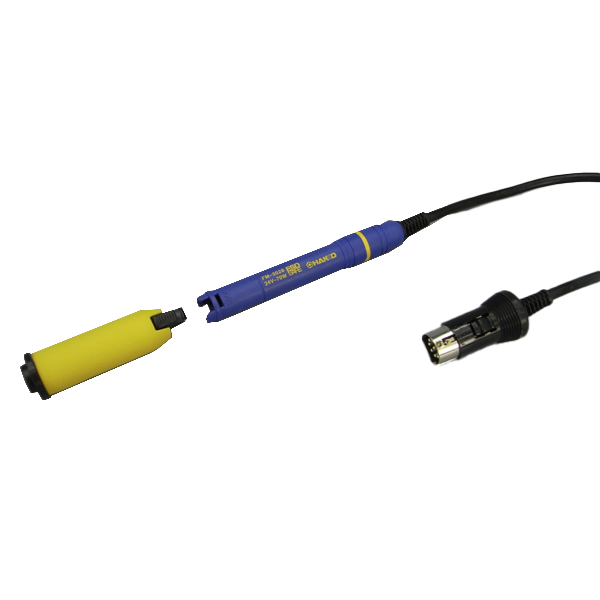

- FM2028-01: Connector Assembly. Yellow Sleeve Assembly. Instruction Manual
-

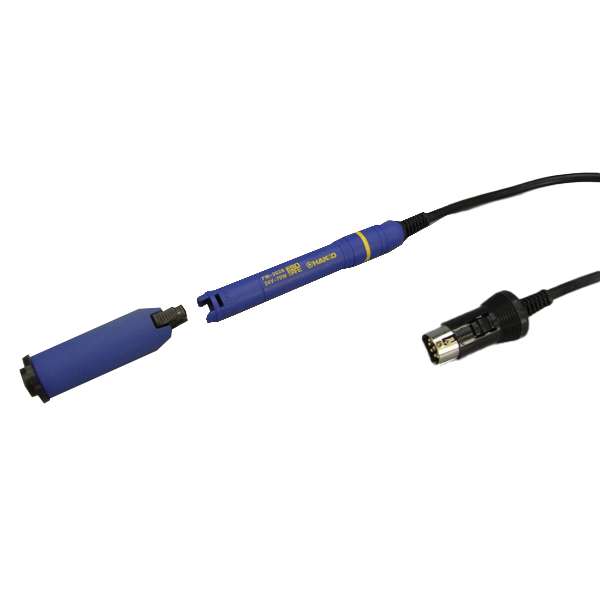

FM2028-02: Connector Assembly. Blue Sleeve Assembly. Instruction Manual
- FM2028-03: Connector Assembly. Instruction Manual. (Sleeve Assembly not included)
Features
Easy removal of sleeve assembly and tip
Simply press down on the lock release button and pull the sleeve assembly out! Both the sleeve assembly and soldering tip comes out easily for quick removal or tip change.
Easy and secure tip insertion
When the tip is inserted into the sleeve assembly. you should hear a 'click' sound. This means that the tip has been inserted securely.
Sleeve color variation
An addition of the green sleeve assembly to the current yellow. orange and blue allows the user to assign the color to a specific tip shape or size. making it easy to identify while working with multiple soldering irons.
Specifications
- Power consumption: 70W (24V)
- Temperature range: 200 to 450ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 188mm (with 2.4D tip. without cord)
- Weight: 30g (with 2.4D tip. without cord)
Replacement Parts
| Part Number | Product Name |
| B3220 | Connector Cover |
| FH200-01 | Iron Holder with Cleaning Wire and Power Save Function |
| B2791 | Retaining Clip |
| 599B-02 | Tip Cleaner (Metal Wire Sponge) |
| 599-029 | Cleaning Wire |
| B3253 | Connecting Cable |
| B2300 | Heat Resistant Pad |
| B3216 | Yellow Sleeve Assembly |
| B3217 | Orange Sleeve Assembly |
| B3218 | Blue Sleeve Assembly |
| B3219 | Green Sleeve Assembly |
| A1519 | Cleaning Sponge (Replaces A1536) |
Additional Information
| Model |
Yellow Sleeve Assembly (FM2028-01), Blue Sleeve Assembly (FM2028-02), No Sleeve Assembly (FM2028-03) |
|---|
FM-2028 Soldering Iron
$69.20
