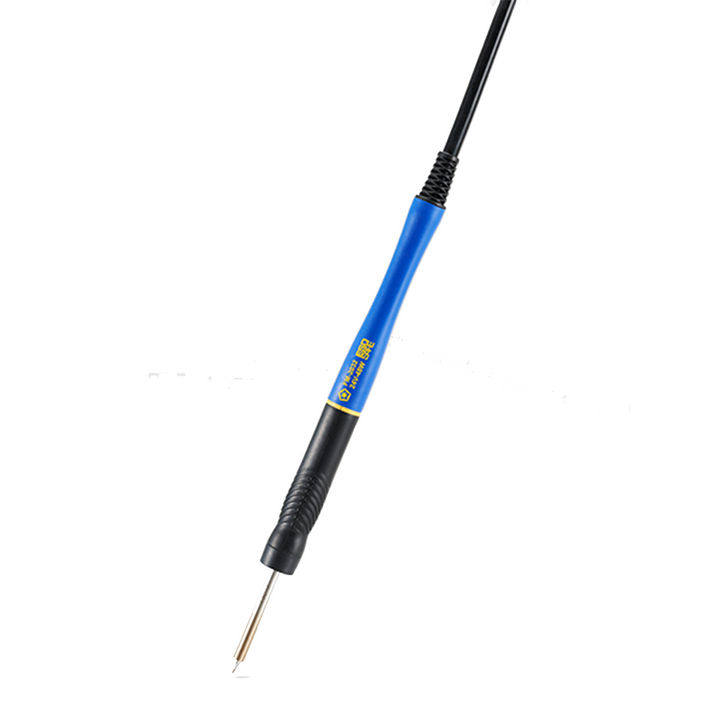

FM-2032 Micro Soldering Iron Handpiece / Conversion Kit

Please refer to the User Manual for detailed specifications.

Please note that you'll need both the tip. its compatible nozzle assembly and hose assembly B5178 for the soldering iron to function with the N₂ system (Tip + Assembly Unit).

Features

Perform delicate soldering with your soldering station.
Connect to FX-951. FM-203 or FM-206. The high power 48W heater is capable even for multilayer PWB with excellent thermal recovery.

Ideal for micro-soldering applications under a microscope
HAKKO's slim and light-weight soldering iron allows for a high level of visibility. even with small and intricate components. The fine tip and slim heater ensure sophisticated soldering for precise components on high density PWB under microscope.

N₂ system compatibility
Optional parts. "Hose assembly” and appropriate “Nozzle assembly” for the tip makes FM-2032 compatible with N₂ system.

Improved work efficiency
The composite header inside the iron is well-suited for minute and high-density components. There are also multiple narrow tips that are meant for navigating narrow workspaces.

Detachable grip mark
Attach a grip mark for lead-free soldering or remove it for eutectic soldering. Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.

Specifications

Model: FM-2032

• Temperature Range: 400° - 840°F (200° - 450°C)
• Tip-to-Ground Resistance: <2 ohms
• Tip-to-Ground Potential: <2mV
• Temperature Accuracy: Meets or Exceeds IPC J-STD-001
• Temperature Stability: Meets or Exceeds IPC J-STD-001
• Reach: 3.9 ft. (1.2m)
• Handpiece Length: 6.7 in. (170mm) w/T30-D1 tip
• Handpiece Weight: 0.49oz (14g) w/T30-D1 tip Tips T30 Series (not included)
• ESD Safe: Yes

Replacement Parts

*B5000 can be attached to any iron holder used for FM-2028. FM2027. or FM-2026 to make it compatible for FM-2032.

Optional Parts
