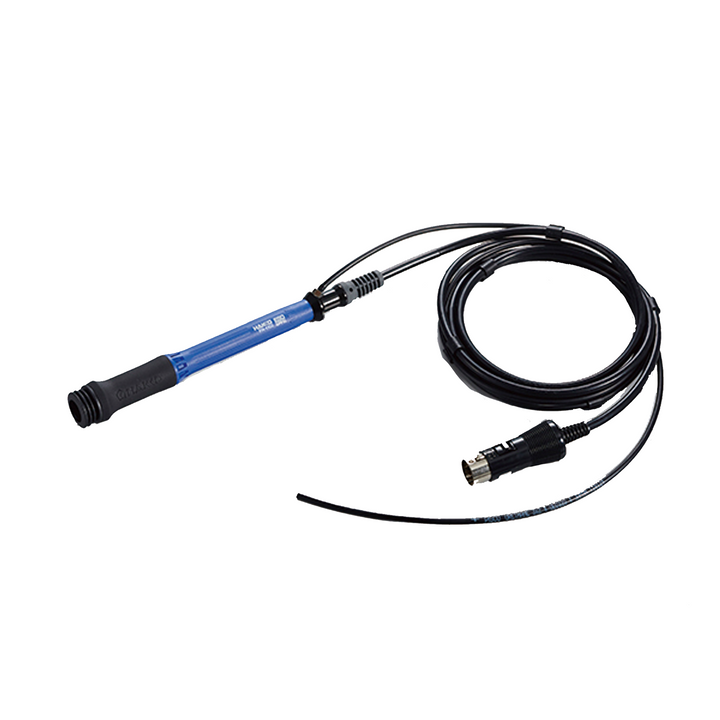

FN-1102 N2 Soldering Iron 230V

$369.00
  • Free Shipping over $100
  • 1-Year Warranty
  • 30-Day Return
  • Delivery within 7-14 Days

amazon paymentsamerican expressapple paygoogle payjcbmastershopify payvisa
SKU: FN1102-81
Availability: In Stock Pre order Out of stock
Categories: Soldering Iron
Tags: 1010 1102 FN FN-1010 FN-1102 FN1010 FN1102 N2 nitrogen Soldering Iron
Description

Nitrogen Gas (N2) soldering iron designed exclusively for HAKKO FN-1010

NOTE: neither soldering tip nor nozzle assembly is included. Please purchase a "T36 Series" soldering tip and a compatible nozzle assembly onto the tip separately

Features

Nitrogen (N2) System

Preventing oxidation
The Nitrogen gas (N2) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.

Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer. improving the solder wettability and spreadability. Heated N2 gas improves solderability. and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

Preheating effect
N2 gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

IoT capable iron for N2 System
Requires connection to temperature control station (sold separately).

T36 series
When purchasing this unit. please buy your desired soldering tip and with nozzle assembly together.

N2 system required equipments
  1. N2 soldering iron HAKKO FN-1102
  2. Comaptible soldering station for FN-1102
  3. Soldering tip T36 series and nozzle assemblies for FN-1102
  4. N2 generator HAKKO FX-780/FX-781
  5. N2 Flowmeter HAKKO FX-791
  6. Required Regulator. Filters. Compressor etc. separately
Specification

  • Please note: This handpiece does not include neither a soldering tip nor a nozzle assembly. When purchasing this handpiece. please buy your desired soldering tip and nozzle assembly separately.

  • Please note: This soldering iron cannot be used as a stand-alone unit.

  • Power consumption: 95W (21V)

  • Temperature range: 50 to 450ºC

  • Tip to ground resistance: <2Ω

  • Tip to ground potential: <2mV

  • Heating element: Composite heater

  • Cord length: 1.2m

  • Total length: 180mm (with 2.4D tip). excludes cord and tube

  • Weight: 50g (with 2.4D tip and nozzle assembly A). excludes cord and tube

Replacement Parts
Part Number Product Name
B5217 Nipple with Sealing Valve
B5218 Sealing Valve
