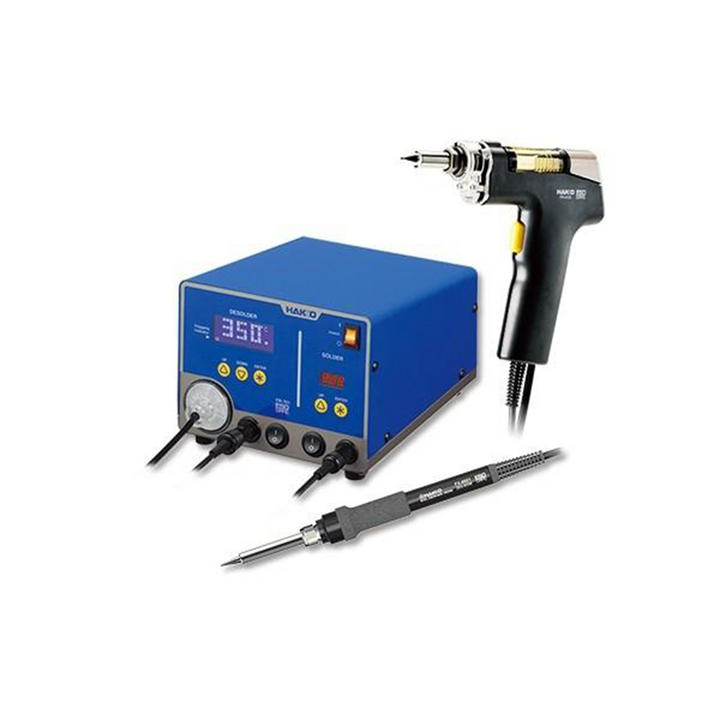

FR-701 Repair System 230V

$2,500.00 $1,500.00
  • Free Shipping over $100
  • 1-Year Warranty
  • 30-Day Return
  • Delivery within 7-14 Days

amazon paymentsamerican expressapple paygoogle payjcbmastershopify payvisa
SKU: FR701-67
Availability: In Stock Pre order Out of stock
Categories: Desoldering and Rework
Tags: Desoldering and Rework FR701-67 Repair System
Description
  • Powerful Rework Station
  • Safer and more secure rework operation
  • with upgraded soldering and desoldering tools
  • 2-in-1 unit for space saving
  • Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessory
Features

Dual function rework station with FR-4103. 140W high power desoldering gun. and FX-8801. soldering iron. 2-in-1 unit for space saving.

6 applications for a variety of soldering and desoldering works

  • Besides FR-4103. 140W desoldering gun. and FX-8801. soldering iron. 4 more applications are compatible with FR-701.
  • Tips (T18 and T19 series) and nozzles (N61 series) deliver excellent cost efficiency.

High-power Desoldering gun HAKKO FR-4103

  • Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475). it can make it easy to desolder on multi-layer PWB which was never an easy job. and it can also shorten the process time.
  • A wide selection of nozzle. with the addition of new types. is available for a variety of desoldering works.
    • Long type nozzles for narrow space
    • Oval shape nozzles for flat terminals
    • SS type nozzles for micro land-patterns

Soldering iron HAKKO FX-8801/FX-8805

  • Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.

N2 soldering iron HAKKO FX-8802

  • The N2 gas runs into the nozzle assembly and covers over the soldering tip.
  • It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
  • Two effects of N2 system. preventing oxidation or preheating effect. can improve soldering defects such as bridging. protrusion icicle. insufficient solder filling in PTH. etc.

One-hand Manual-solder-feed iron HAKKO FX-8803

  • Solder and feed with one hand
  • Feed a set amount of solder with one hand
  • Manual feed system is perfect for cellular manufacturing.
  • Soldering work can be conducted at the pace of the operator.
  • T18 tips series are compatible with this application.

SMD Hot Tweezer HAKKO FX-8804

  • Direct heating—less influence upon surrounding components on crowded boards.
  • Easily removes SMD chips and flat packages up to 25mm.
  • The collet allows easy replacement and alignment of the tips.
Specifications

Model No. FR-701(Desoldering tool: FR-4103)

Power consumption: 260W

Station

  • Dimensions: 190(W)×140(H)×220(D)mm
  • Weight: 6.2kg

 Station (Soldering)

  • Output voltage: AC 26V
  • Temperature range: 50 to 480ºC
  • Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)

  • Output voltage: AC 24V
  • Vacuum generator: Vacuum pump. double cylinder type
  • Vacuum pressure: 80kPa (600mmHg)
  • Suction flow: 15L/min.
  • Temperature range: 330 to 450ºC
  • Temperature stability: ±5ºC at idle temperature

 Soldering iron

  • Power consumption: 65W (26V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Ceramic heater
  • Standard tip: Shape-B (No.T18-B)
  • Cord length: 1.2m
  • Total length: 222mm (with B tip)
  • Weight: 52g (with B tip)

Desoldering Gun

  • Power consumption: 140W (24V)
  • Nozzle to ground resistance: <2Ω
  • Nozzle to ground potential: <2mV
  • Heating element: Composite heater
  • Standard nozzle: Φ1.0mm S type (No.N61-05)
  • Cord length: 1.2m
  • Total length: 168mm (with Φ1.0mm S type nozzle)
  • Weight: 190g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord. hose)
