FR870B-06 IR Preheater 230V

• Infrared pre-heater that provides the optimal heating effect over the whole workpiece surface
• 2 Independent switchable work grid partitions
• Infrared carbon heater

Features

Carbon heaters lamps provide powerful support for insufficient heat when reworking and mounting post-production add-ons

Entire work surface heats rapidly for instant use and improved efficiency

• Six carbon heaters let you preheat the whole board in next to no time after turning the power on.
• Full-board heating and quick temperature ramping let you get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity.
• As it does not contaminate the air. the HAKKO FR-870B also offers powerful support for a clean workplace environment in industrial applications.

Non-contact system can be used with double-sided boards

• Non-contact system allows preheating of double-sided boards. which hot plates cannot handle.

Set thermal profiles

• Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly. letting you transmit 100% of the heat energy from a rework system and soldering iron.
• You'll never be forced to work with a higher set temperature due to insufficient heat again.

Board attachment system facilitates continuous work

• Once a PWB is positioned. boards of the same dimensions can be removed or attached in a single motion. This design greatly facilitates continuous work.

Specifications

Model No. FR-870B

• Power consumption: AC230V：1.240W
• Operation mode: Power mode. T/C mode. Auto power mode. auto T/C mode
• Setting range : Power mode 0 to 100%
• Setting range : T/C mode 50 to 200ºC
• Setting range : Set time 0-999seconds
• Heating element: Carbon heater
• Effective heated area: 190(W)×80(D)mm
• Heater area dimensions: 248(W)×140(D)mm
• Heater zone: 2
• Temperature sensor: K-type thermocouple
• Heater lifetime: 2.100hours
• Heater control: Power mode : Percentage-based system. T/C mode : PID control
• External connections: Start signal input possible
• Dimensions: 296(W) × 100(H) × 311(D) mm
• Weight: 3.2kg

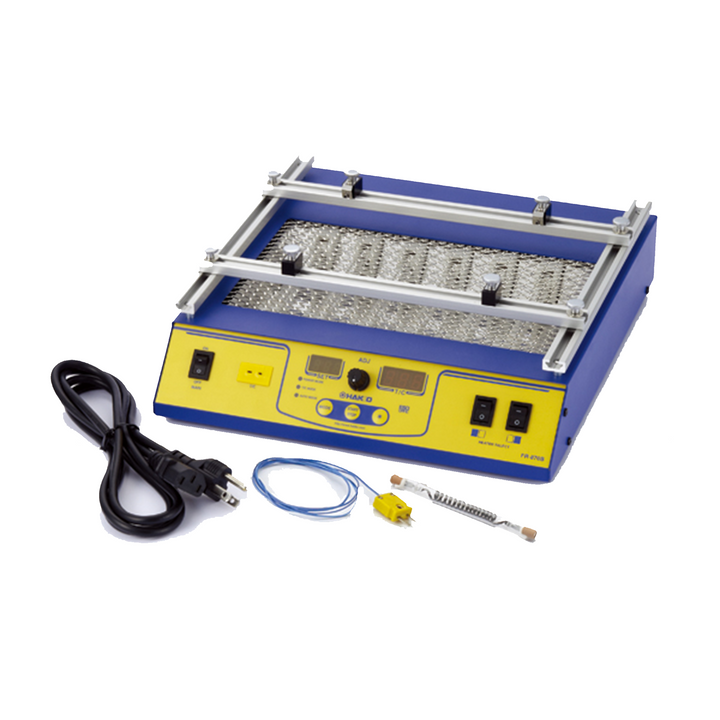

Packing List

Unit. thermocouple (type K). power cord. heater lamp (spare). instruction manual
