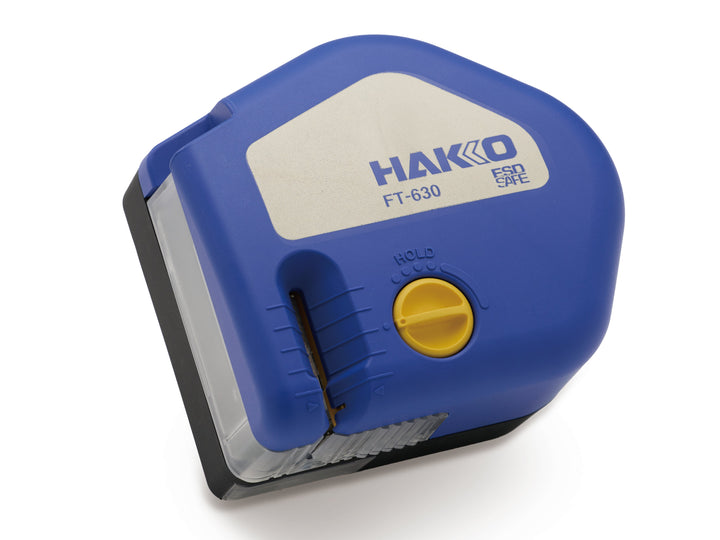

Industry's first "WICK Cutter"
- No need for nippers for quick cuts
- Eliminate contamination issues
Features

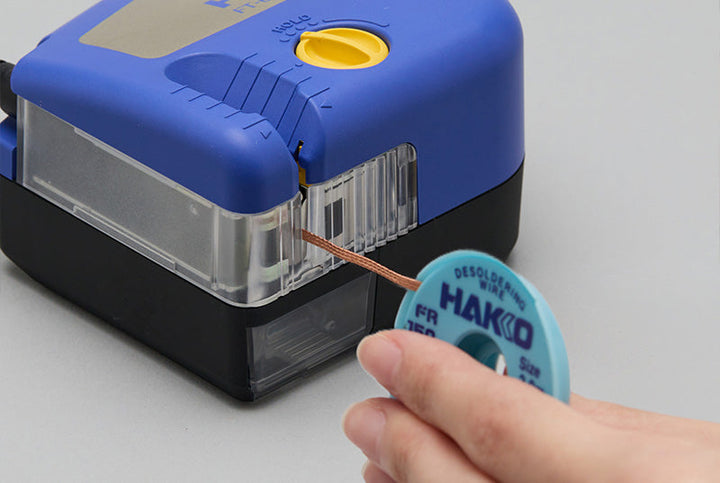

No need for nippers for quick cuts
You can cut the wick without switching to nippers after solder removal. improving work efficiency.
Eliminate contamination issues!
After cutting. the wick debris (or sliver of wick) is collected in the wick collector. preventing them from scattering onto the workbench and eliminating contamination concerns.
Wick holding mechanism after cutting
The holding mechanism eliminates the need to manually pull and withdraw a new wick after cutting. You can also adjust the holding force.
Supports diagonal cuts
Diagonal cutting makes it possible to access narrow spaces.
ESD Safe
Work with confidence even in ESD-controlled environments.

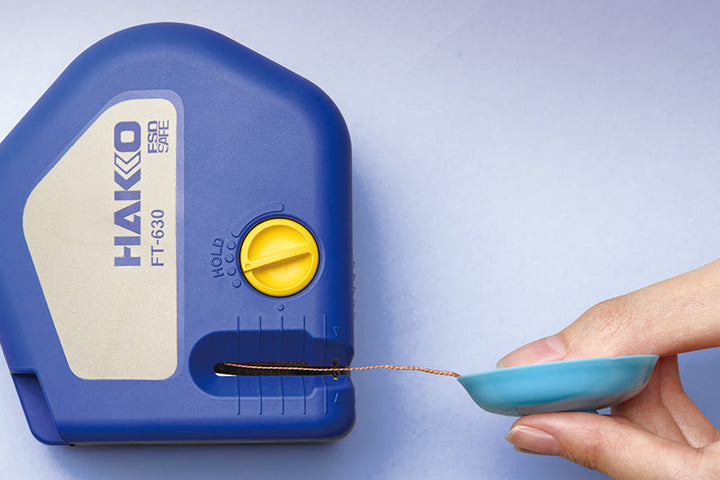

Cut WICKS to any length
Compatible with WICK width from 0.7 to 3.8 mm. and cutting length from 2.5 to 30 mm.
You can also cut WICK short in advance and store it for later use. which will improve your work efficiency.
Replaceable cutting blades
Blades can be easily replaced.
Specifications
- Corresponding Wick Width - 0.7 to 3.8mm
- Cut Length - 2.5 to 30mm
- Dimensions - 100 (W) x 61 (H) x 92 (D)mm
- Weight - 280g
- AC Adapted Output Voltage - DC 24V
Packing List
- Unit
- AC Adapter
- Instruction Manual
Replacement Parts
- A5072: Replacement cutting blades
- B5383: Wick Collector
- B5382: Front Cover
