Description
Soldering iron for Hakko FX-100 Induction Heating Soldering Station
Click here to shop compatible tips for the FX-1001 Soldering Iron
| Tips | Temperature |
| T31-03xx | 350°C |
| T31-02xx | 400°C |
| T31-01xx | 450°C |
|
Shape (T31-03/02/01xx) |
Specifications |
| BC1 | 60° / 14.2mm / 1.2 x ⌀1 |
| BC28 | 60° / 17.6mm / 3.1 x ⌀2.8 |
| BL | R0.2 / 12mm |
| SBL | R0.2 / 13.7mm (Narrow Pitch Soldering) |
| D08 | 9mm / 0.5 x ⌀0.8 |
| D16 | 10mm / 0.5 x ⌀1.6 |
| D24 | 10mm / 0.5 x ⌀2.4 |
| D52 | 7.8mm / 0.8 x ⌀5.2 |
| WD08 | 6mm / 0.5 x ⌀0.8 |
| I | R0.2 / 8.4mm |
| IL | R0.2 / 14.7mm |
| JS02 | R0.2 / 30° / 1.8 x 6.6mm |
| J02 | R0.2 / 30° / 4 x 11mm |
| JL02 | R0.2 / 30° / 7.2 x 8mm |
| KU | 45° / 15mm / 2.2 x ⌀4.8 |

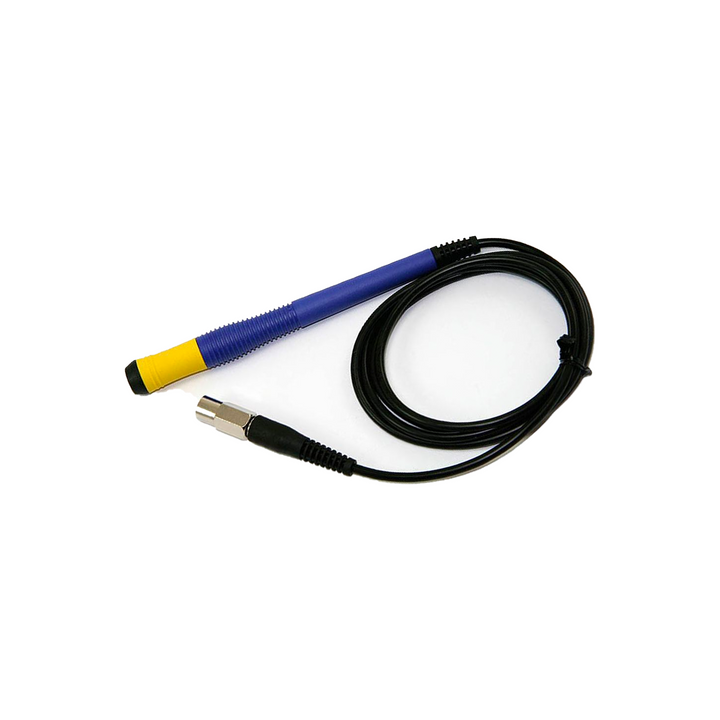

FX-1001 Soldering Iron
$69.20
