FX-780 N2 Generator

$3,370.00 $1,680.00
  • Free Shipping over $100
  • 1-Year Warranty
  • 30-Day Return
  • Delivery within 7-14 Days

amazon paymentsamerican expressapple paygoogle payjcbmastershopify payvisa
SKU: FX780-01
Availability: In Stock Pre order Out of stock
Categories: Soldering Related Equipment and Materials
Tags: FX780 FX780-01 Generator N2 Soldering Related Equipment and Materials
Description
  • It generates Nitrogen gas at max. concentration of 99.9%
  • It provides N2 gas by compressed air which does not need electric power supply.
  • Large-capacity type accepts 2 soldering irons

Please refer to the User Manual for detailed specifications.

Features

Compact N2 generator

  • Highest concentration of nitrogen gas: 99.9%
  • Non-electrical compressed air delivers N2 gas
  • HAKKO FX-781 large-capacity type accepts 2 soldering irons and capable of creating high concentration and large flow of N2 gas.

Performance Table of HAKKO FX-780

Air Supply Pressure
(MPa)
 99.9 99.5 99.0 98.0 97.0 96.0 95.0 90.0
0.3 0.15 0.37 0.48 0.66 0.88 1.1 1.3 2.6
0.4 0.24 0.57 0.77 1.1 1.4 1.7 2.0 4.4
0.5 0.35 0.75 1.1 1.5 1.9 2.2 2.9 5.9
0.6 0.48 0.97 1.3 1.8 2.4 3.1 3.5 7.5
0.7 0.55 1.2 1.6 2.2 3.1 3.7 4.2 9.2

For one soldering iron For two soldering irons For high concentration and large flow of N2 gas like auto soldering unit
Packing List

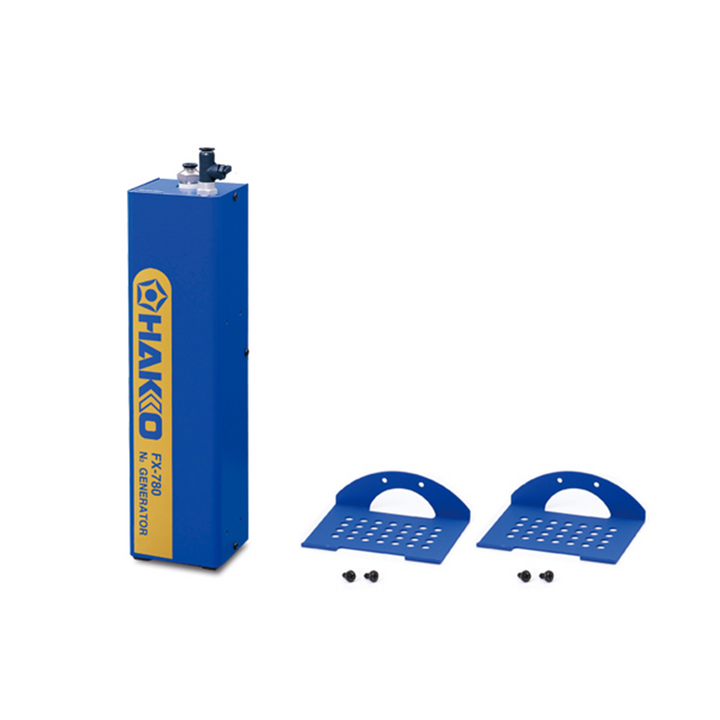

N2 generator. Racks for station with screws (4pcs.). Fitting. Instruction manual

Specifications
Model No. FX-780
Air supply pressure 0.3 to 0.7MPa
Concentration of generated N2 99.9% (Max.)
Amount of generated N2 1.5L/min. (When compressed air of 0.5MPa is supplied at 25ºC. the concentration of generated nitrogen is 98%.)
Dimensions 73(W)×282(H)×71(L) mm
Weight 1.5 kg
Accessories
Name Specifications
B3024 Racks for station with screws
