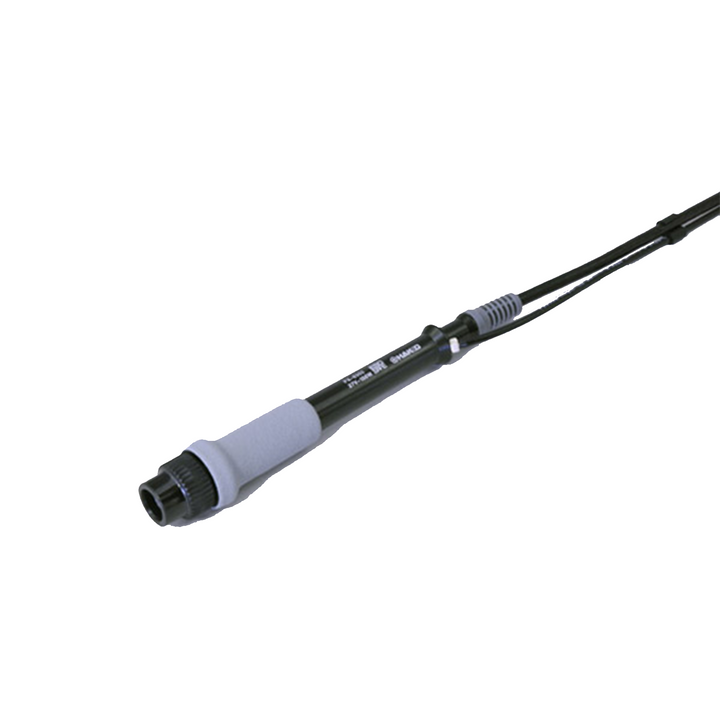

FX-8302 Nitrogen High Power Soldering Iron 230V

*soldering tips not included

Nitrogen gas (N₂) soldering iron designed exclusively for HAKKO FX-838.

Features

Preventing oxidation
The Nitrogen gas (N₂) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.

Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer. improving the solder wettability and spreadability. Heated N₂ gas improves solderability. and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

Preheating effect
N₂ gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

Can be used with HAKKO FX-838. FX-780. FX-781. FX-791

Packing List

• Packing List: N₂ soldering iron.
• Please Note: This soldering iron cannot be used alone. It requires the N2 system.

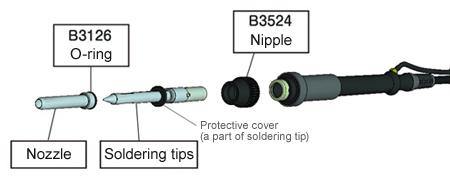

• Please Note: This unit does not include a soldering tip/nozzle assembly. Kindly buy your desired soldering tip/nozzle assembly separately.

Specifications

• Power consumption: 150W (27V)

• Temperature range: 200 to 500ºC
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Ceramic heater
• Cord length: 1.2m
• Total length :195mm (with 2.4D tip). excludes cord and tube
• Weight: 41g (with 2.4D tip and nozzle assembly D). excludes cord and tube

Nitrogen (N2) System

Replacement Parts
