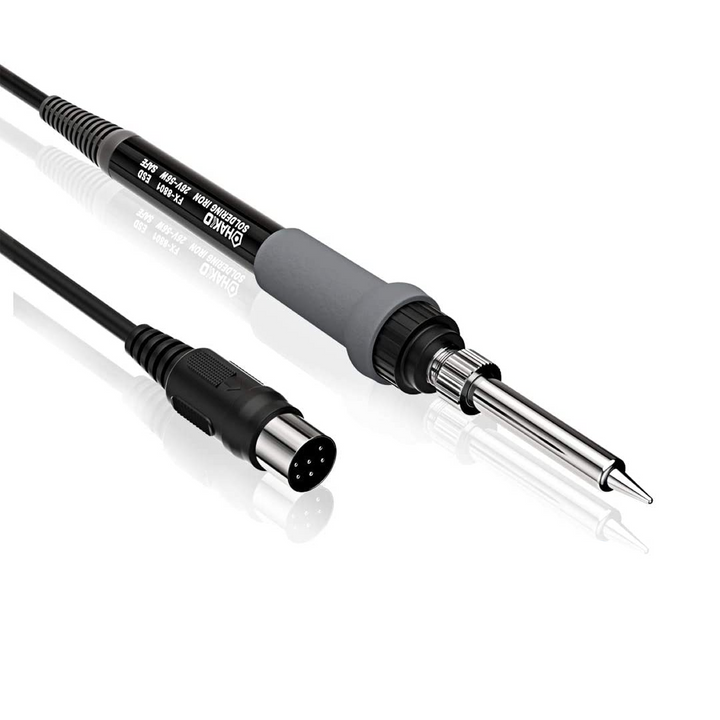

FX-8801 Soldering Iron M Type 230V

• Compatible with FX-888D All-Round Soldering Station and FX-889 2-Port All-Round Soldering Station.
• Excellent thermal conductivity
• HAKKO FX-8801: M type soldering iron for use with T18 tip series
• HAKKO FX-8805: L type soldering iron for use with T19 tip series

Please refer to the User Manual for detailed specifications.

Specification

• Packing List: Handpiece. Instruction Manual
• Power consumption 65W (26V)
• Temperature range 50 to 480ºC
• Tip to ground resistance <2Ω
• Tip to ground potential <2mV
• Heating element Ceramic heater
• Standard tip for FX-8801: Shape-B (No.T18-B) Shape-B (No.T19-B)
• Standard tip for FX-8805: Shape-B (No.T18-B) Shape-B (No.T19-B)
• Cord length 1.2m
• Total length FX-8801: 217mm (with B tip)
• Total length FX-8805: 222mm (with B tip)
• Weight FX-8801: 46g (with B tip)
• Weight FX-8805: 52g (with B tip)

Replacement Parts

• Use B1785 and B3469 to change FX-8805 to FX-8801.
• Use B5122 to change FX-8801 to FX-8805.
