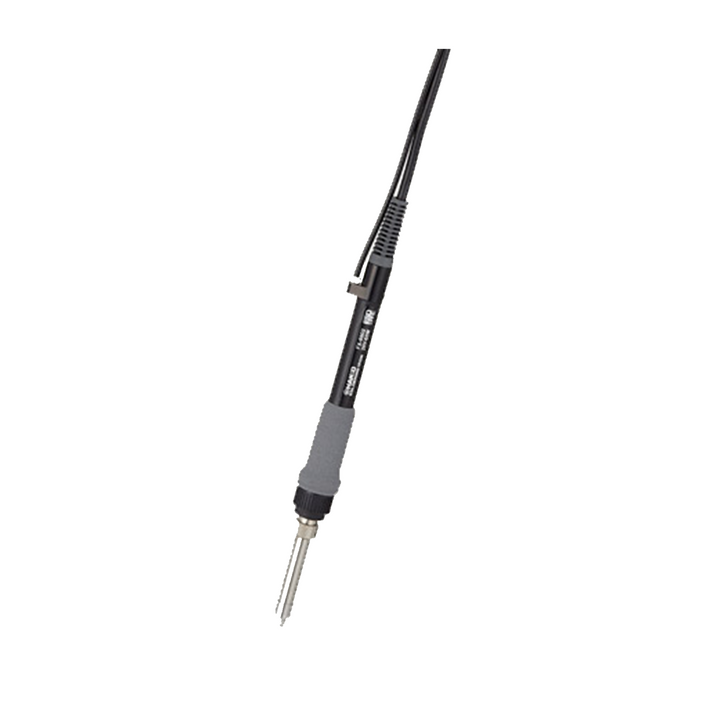

FX-8802 N2 Soldering Iron 230V

Please refer to the User Manual for detailed specifications.

Features

Preventing oxidation
The Nitrogen gas (N₂) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.

Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer. improving the solder wettability and spreadability. Heated N₂ gas improves solderability. and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

Preheating effect
N₂ gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

Can be used with HAKKO FX-888D. HAKKO FX-889. HAKKO FR-701 or HAKKO FR-702 soldering station.

Packing List

• N₂ soldering iron
• Soldering tip (Shape B)
• Nozzle assembly A
• Shield plate
• Instruction manual
• Please note: This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit. please purchase your desired soldering tip and nozzle assembly separately.
• Please Note: This soldering iron cannot be used alone. It requires the N₂ system.

Specifications

• Power consumption: 65W (26V)
• Temperature range: 50 to 480ºC
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Ceramic heater
• Standard tip: Shape-B (No.T18-B)
• Cord length: 1.2m
• Total length: 190mm (with B tip). excludes cord and tube
• Weight: 59g (with B tip and nozzle assembly A). excludes cord and tube
• *Do not set the temperature over 450ºC.
