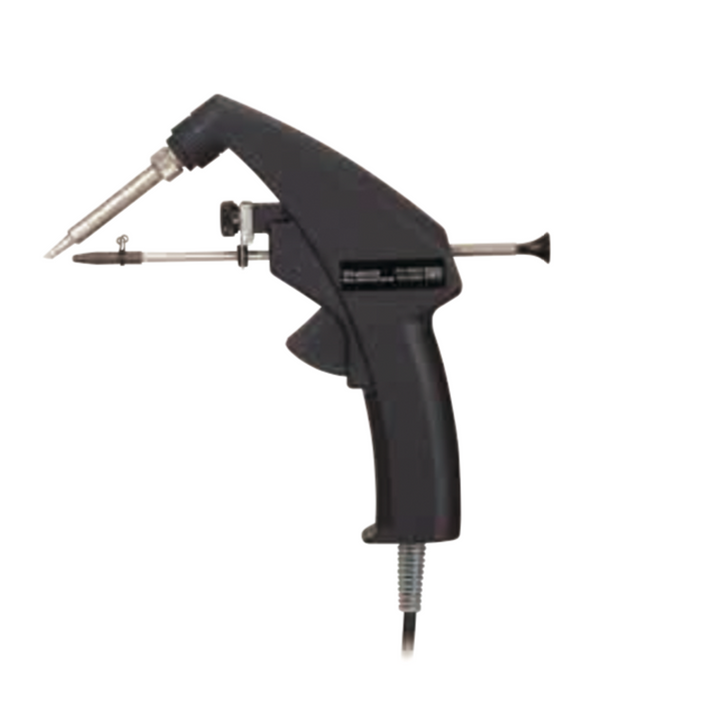

FX-8803 Soldering Iron 230V

• One-hand manual-solder-feed iron designed exclusively for HAKKO FX-888D. FX-889. FR-701 and FR-702
• Manual system allows solder to be fed only when needed.

Please refer to the User Manual for detailed specifications.

Packing List

Features

Solder and feed with one hand

• Can be used with HAKKO FX-888D. FX-889. FR-701 or FR-702 soldering station.
• Can be used with FX-888 (Discontinued model)
• Feed a set amount of solder with one hand.
• Perform two actions at the same time with one hand.

Manual feed system is perfect for cellular manufacturing

• Manual system ensures solder can only be fed when working
• Soldering work can be conducted at the pace of the operator

Other Features

• Extensive lineup of tips
• Anti-static specifications

Specification

• Power consumption: 65W (26V)

• Temperature range: 50 to 480ºC
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Ceramic heater
• Standard tip: Shape-3CF (No.T18-CF3)
• Guide nozzle: Φ1.0mm (Option except Φ1.0mm guide nozzle)
• Usable solder diameter: Φ0.6. 0.8. 1.0. 1.2. 1.6mm
• Cord length: 1.1m
• Dimensions: 170(W)×180(H)×23(D)mm (with 3C tip)
• Weight: 207g (with 3C tip). excludes cord

Soldering Tips (T18)

Please note that not all T18 tips are suitable for FX-8803. Kindly see the table below for the applicable T18 tips.

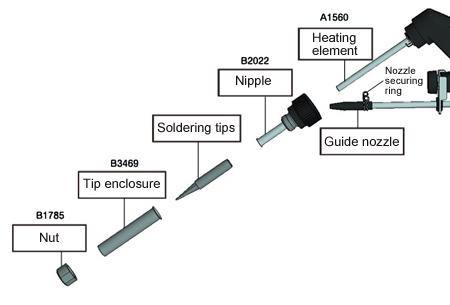

Replacement Parts

Optional Parts
