Description
Please refer to the User Manual for detailed specifications.
- Hot tweezers designed exclusively for HAKKO FX-888D. FX-889. FR-701 and FR-702
- FX-8804 enables the easy removal of SMD chips and flat packages of up to 25mm
- The iron holder clip allows accurate positioning of the tip
- Direct heating—less damage upon surrounding components on crowded boards.
- Compatible with Iron Holder FH800-04BY / FH800-04SV
- Compatible with Iron Holder FH800-03BY / FH800-03SV by purchasing additional holder clip B3666
Packing List
- Handpiece
- Standard tip: A1378 (Chip 2L)
- Warning label
- Heat-resistant pad
- Instruction manual
Specification
- Power consumption: 65W (26V)
- Temperature range: 200 to 400ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Standard tip: Shape-2L (No.A1378)2 pcs/set
- Cord length: 1.2m
- Total length :186mm (with Chip 2L tip). excludes cord
- Weight: 93g (with Chip 2L tip). excludes cord
- * The recommended (process) temperature is from 200ºC to 400ºC while setting temperature range of FX-888D is from 50ºC to 480ºC.
Replacement Parts
| Part Number | Product Name |
|
B2300 |
Heat resistant pad |
| A1578 | Heating element (2 pc). (65W. 26V) |
| B2289 | Nipple |
Optional Parts
| Part Number | Product Name |
| FH800-03BY. FH800-03SV | Iron holder with cleaning sponge. requires part B3666 |
| FH800-04SV. FH800-04BY | Iron holder with cleaning sponge |
| A1559 | Cleaning sponge for FH-800 |
| A1561 | Cleaning wire for FH-800 |
| B3666 | Attachment holder clip for FH800-03BY. FH800-03SV |

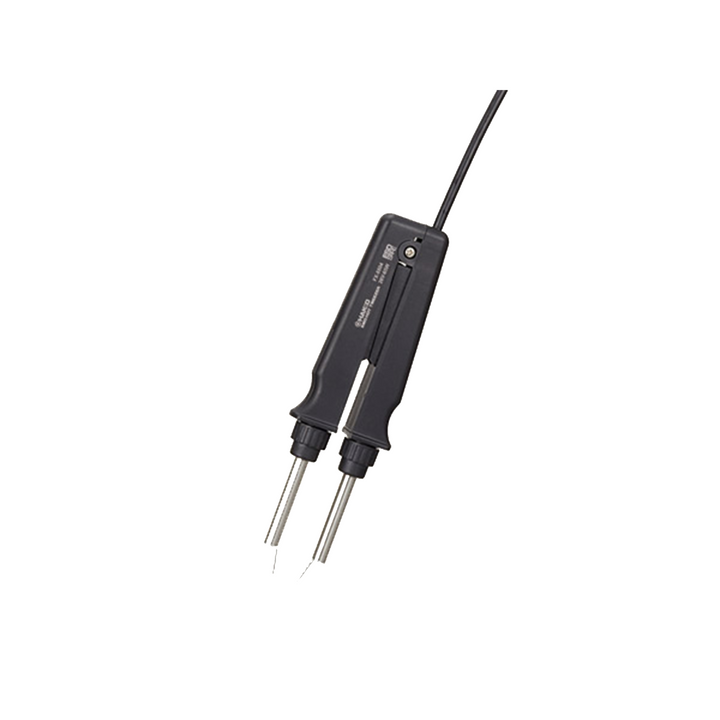

FX-8804 SMD Hot Tweezers 230V
$185.00
