Description

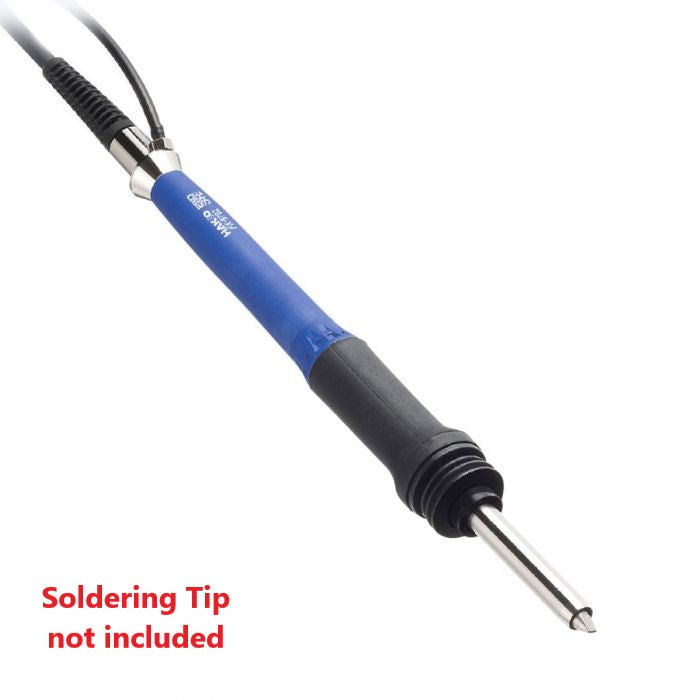

N2 Soldering Iron for FX-971. Has 95W of power with an ergonomic design and a sleep sensor built directly into the iron.

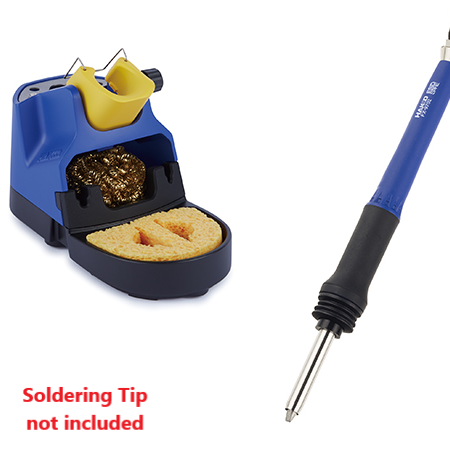

The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece. extra tip storage. easily removable back as well as a cleaning sponge and brass wire.
Packing List
| Iron Only | |
| Soldering Iron* | FX-9702 |
| Instruction Manual | - |
| Conversion Kit | |
| Soldering Iron* | FX-9702 |
| Iron Holder | FH-215 |
| Cleaning Wire |
A1561 |
| Cleaning Sponge | A5038 |
| Instruction Manual | - |
*Soldering Tip and Station NOT included
Specifications
FX-9701 / FX-9702 Soldering Iron
- Soldering Tip Series: T39
- Iron Holder: FH215-81
- Power Consumption: 95W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9701 - Total Length: 206 mm (with 2.4D tip)
- FX-9701 - Weight: 31g (with 2.4D tip)
- FX-9702 - Total Length: 227 mm (with 2.4D tip)
- FX-9702 - Weight: 49g (with 2.4D tip. nozzle assembly D)
Required Equipment for N2 System
| Part No | Product Name |
| FX-971 / FX-972 | Soldering Station |
|
FX-9702 FX-9704 |
N2 Soldering Iron |
|
T39 T50 |
Soldering Tip |
|
T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
| FX-780 / FX-781 | N2 Generator |
| FX-791 | N2 Flowmeter |
| - | Other Equipment* |
*Required regulator. filters. compressors etc are not available in Hakko's product line. It needs to be purchased separately.
Additional Information
| Model |
Iron Only, Conversion Kit |
|---|
FX-9702 N2 Soldering Iron / Conversion Kit
$220.00
