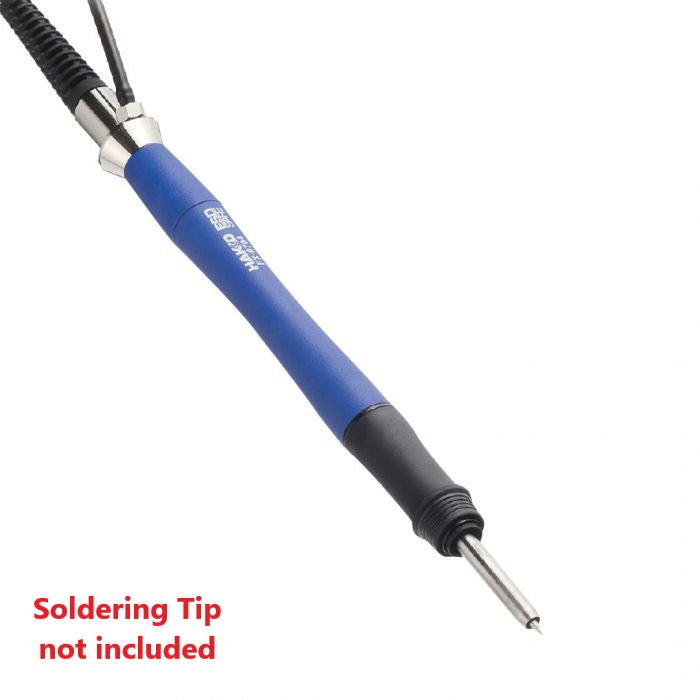

FX-9704 Micro N2 Soldering Iron / Conversion Kit

Micro Soldering Iron for FX-971. Has 70W of power with an ergonomic design and a sleep sensor built directly into the iron.

Ready to use in 3 seconds after power on. Best-suited for micro soldering under a microscope.

Very slim. super-light. and unsurpassed handling ability with a short length of 27 mm from the tip head to the handle and narrow cable of 3.6 mm outer diameter. Holding it just like a pen. you can approach fine components precisely and quickly.

The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece. extra tip storage. easily removable back as well as a cleaning sponge and brass wire.

Packing List

*Soldering Tip NOT included

Specifications

FX-9703 / FX-9704 Soldering Iron

• Soldering Tip Series: T50
• Iron Holder: FH215-811
• Power Consumption: 70W (24V)
• Temperature Range: 50 - 450 °C
• Tip to ground resistance: <2Ω
• Tip/Nozzle to ground potential: <2mV
• Heating Element: Composite Heater
• Cord length: 1.2m
• FX-9703 - Total Length: 174 mm (with 1D tip)
• FX-9703 - Weight: 15g (with 1D tip)
• FX-9704 - Total Length: 196 mm (with 1D tip)
• FX-9704 - Weight: 35g (with 1D tip. Nozzle Assembly A)

Required Equipment for N2 System

*Required regulator. filters. compressors etc are not available in Hakko's product line. It needs to be purchased separately.
