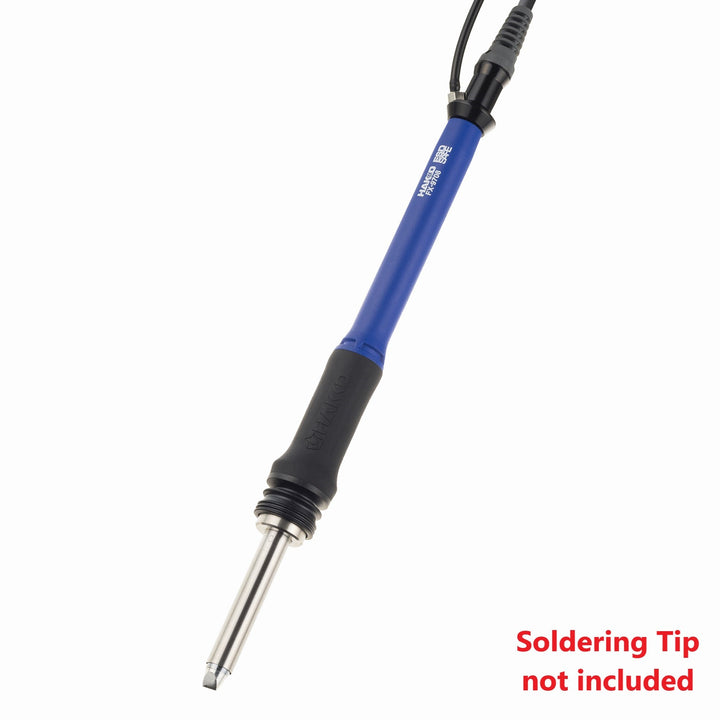

FX-9708 Heavy Duty N2 Soldering Iron / Conversion Kit

• Standard Soldering Iron for FX-972
• 200W High Power

• Nitrogen Soldering Iron

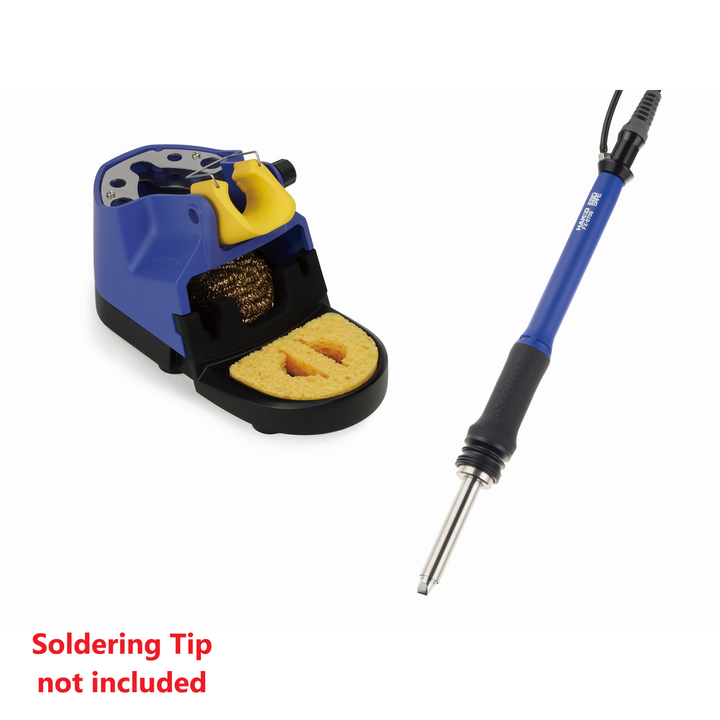

The conversion kit comes with a FH-220 Iron Holder to support the handpiece with a new receptacle piece. extra tip storage. easily removable back as well as a cleaning sponge and brass wire.

Packing List

*Soldering Tip and Station NOT included

Features

Heavy Duty Soldering Station with High Power of 200W

Ideal for high-heat dissipative workpieces like large sized components eg shielded case and coil or multi-layered PWB.

Easy Handling

With a cable diameter of 4.4 mm. the thin cable enables the operator to work smoothly without stress.

Reduction of cycle time by approx 27%

The synergies of the new heater. newly designed tip shapes as well as the 200W power helps to reduce the cycle time and improves work efficiency.

Flow up effective soldering tip with v-groove

4 new types of soldering tips with V-groove improves solder flow-up with a wider contact area to the lands or leaded part

T53 Soldering tips

Safety Design for tip replacement without heat resistant pad

Easily and safely remove and insert a tip with the tip removing attachment and tip insertion holder.

N2 Soldering Iron for Soldering micro components

The hot N2 gas preheats heat-sensitive components like a ceramic condenser and protects them from heat shock. It also prevents tip oxidation by blocking oxygen with N2 gas.

Specifications

FX-9707 / FX-9708 Soldering Iron

• Soldering Tip Series: T53
• Iron Holder: FH-220
• Power Consumption: 200W (24V)
• Temperature Range: 50 - 500 °C
• Tip to ground resistance: <2Ω
• Tip/Nozzle to ground potential: <2mV
• Heating Element: Composite Heater
• Cord length: 1.2m
• FX-9707 - Total Length: 222 mm (with D24 tip)
• FX-9707 - Weight: 41g (with D24 tip)
• FX-9708 - Total Length: 231 mm (with D24 tip)
• FX-9708 - Weight: 47g (with D24 tip. nozzle assembly C)
• Length and Weight measured without cord

Required Equipment for N2 System

*Required regulator. filters. compressors etc are not available in Hakko's product line. It needs to be purchased separately.
