Description
Quick-change type
| N51 Nozzle | Inner Dimensions (mm) | Outer Dimensions (mm) |
| N51-10 | 4 x 4 | 4.5 x 4.5 |

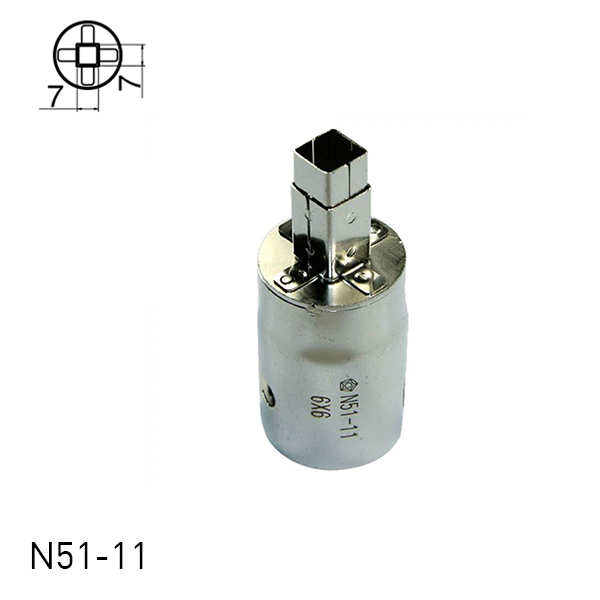

| N51-11 | 6 x 6 | 7 x 7 |
| N51-12 | 8 x 8 | 9 x 9 |

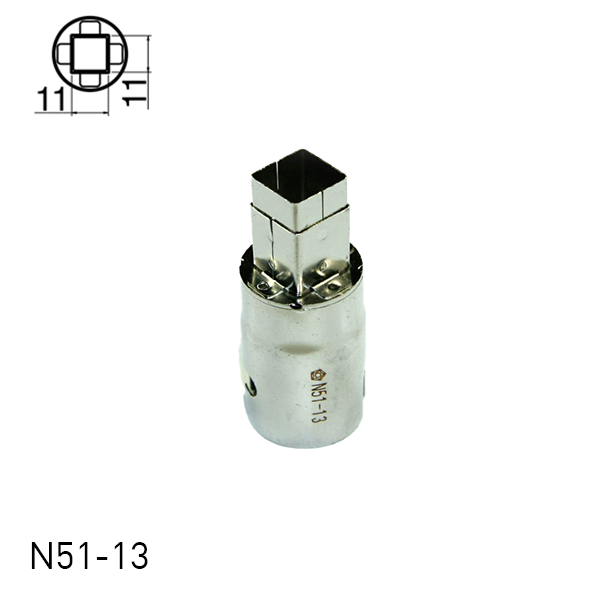

| N51-13 | 10 x 10 | 11 x 11 |

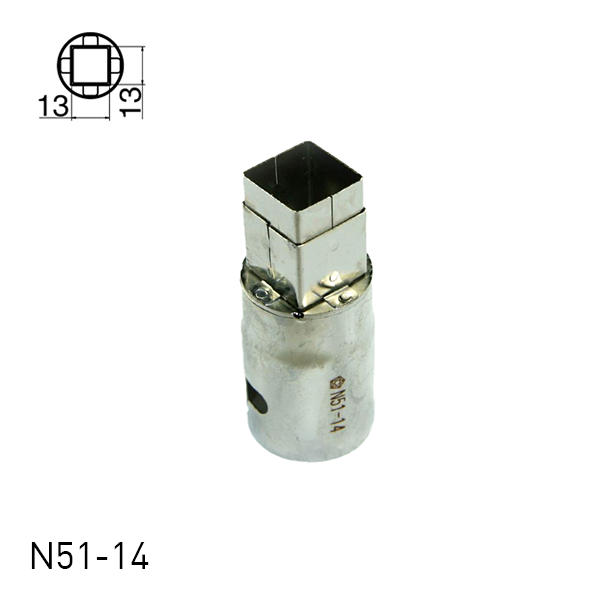

| N51-14 | 12 x 12 | 13 x 13 |

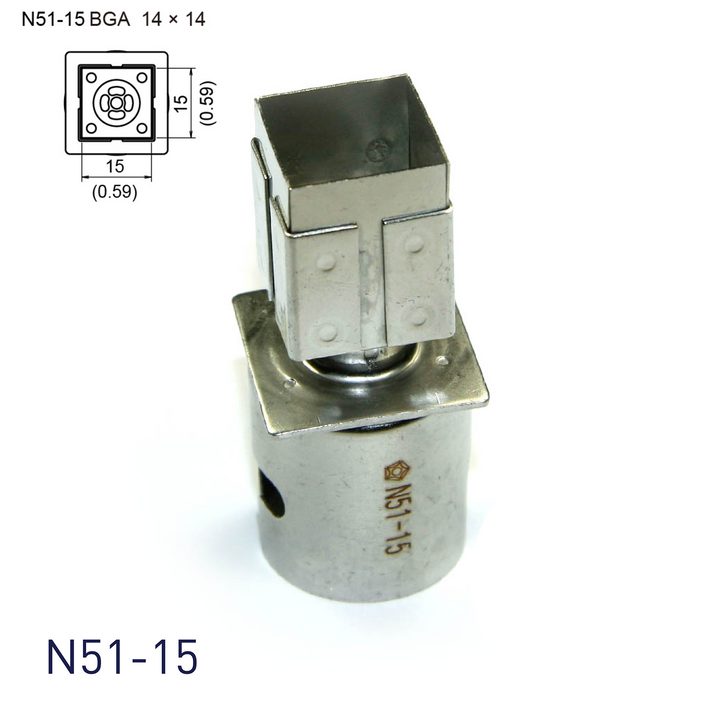

| N51-15 | 14 x 14 | 15 x 15 |

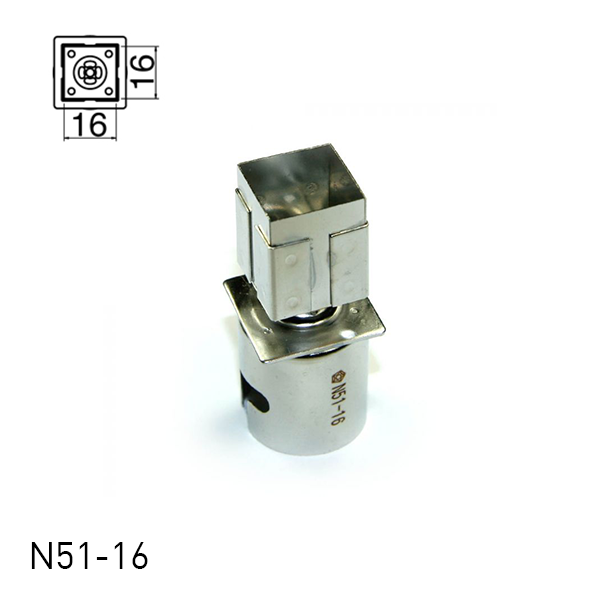

| N51-16 | 15 x 15 | 16 x 16 |

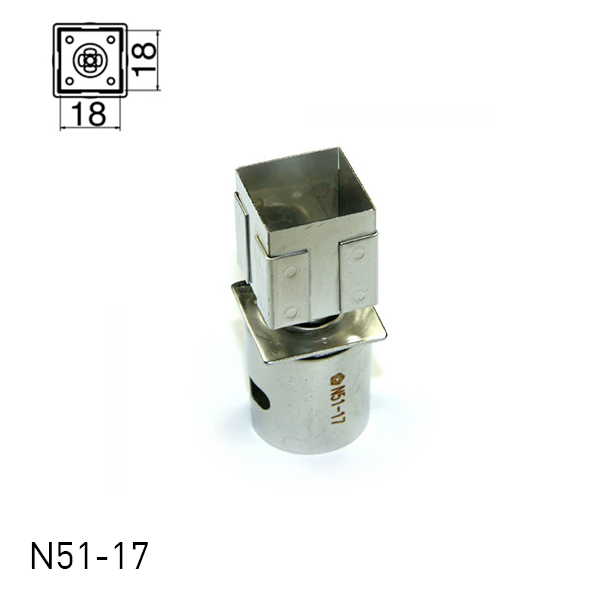

| N51-17 | 17 x 17 | 18 x 18 |

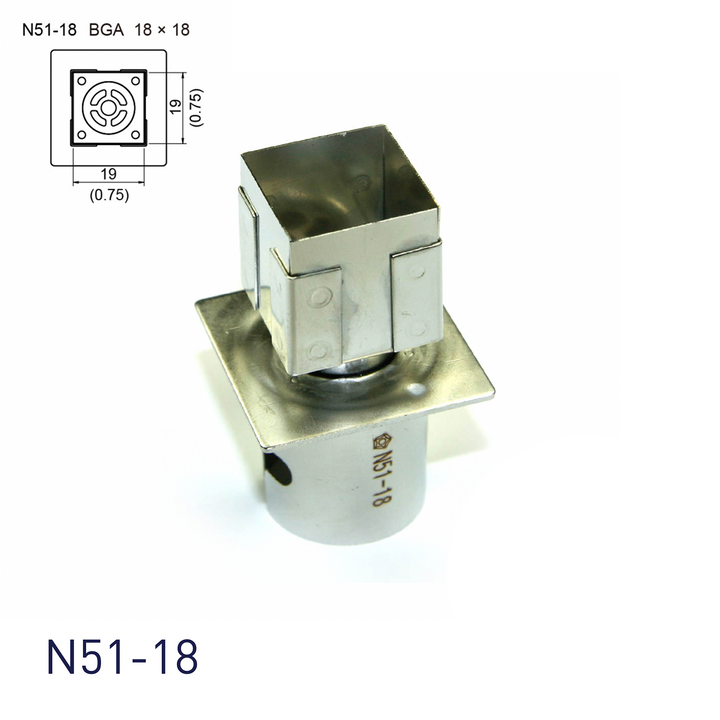

| N51-18 | 18 x 18 | 19 x 19 |
| N51-19 | 20 x 20 | 21 x 21 |

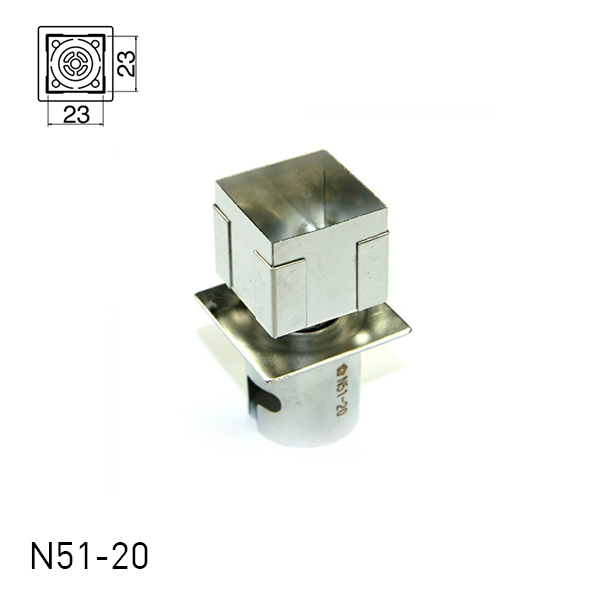

| N51-20 | 22 x 22 | 23 x 23 |

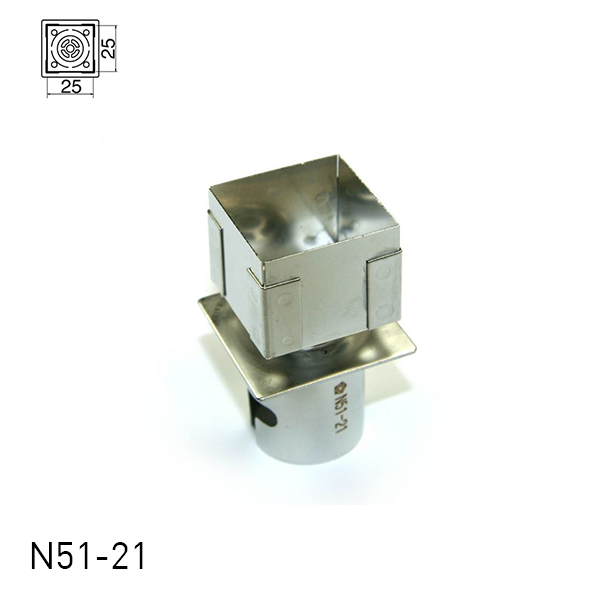

| N51-21 | 24 x 24 | 25 x 25 |
| N51-22 | 27 x 27 | 28 x 28 |

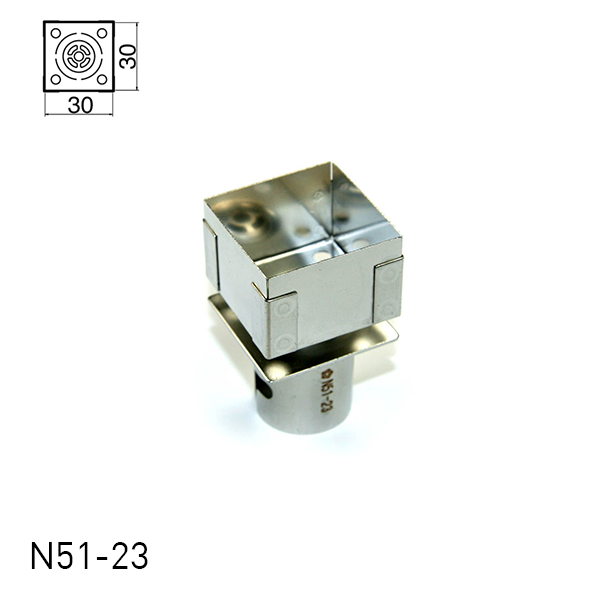

| N51-23 | 29 x 29 | 30 x 30 |
| N51-24 | 35 x 35 | 36 x 36 |

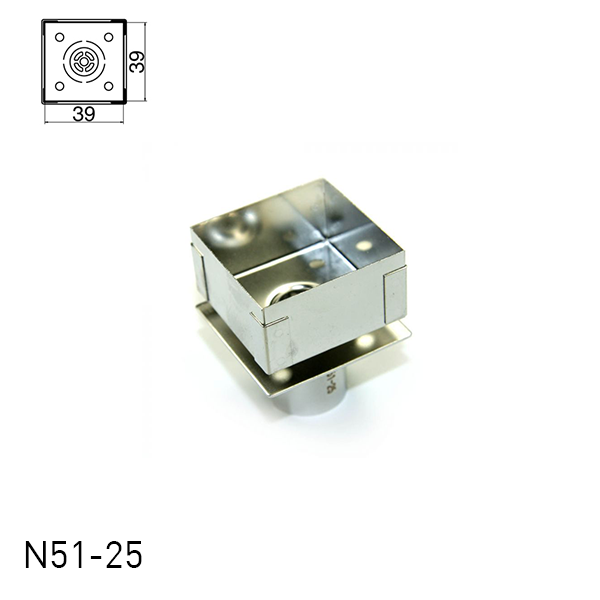

| N51-25 | 38 x 38 | 39 x 39 |

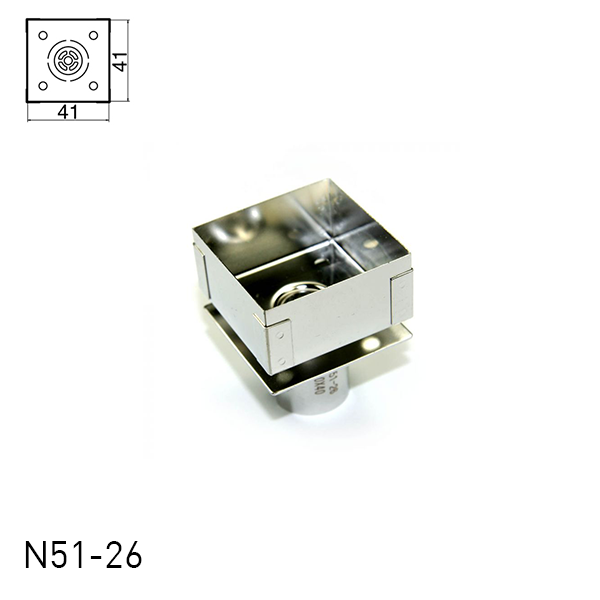

| N51-26 | 40 x 40 | 41 x 41 |
Additional Information
| N51 |
N51-10, N51-11, N51-12, N51-13, N51-14, N51-15, N51-16, N51-17, N51-18, N51-19, N51-20, N51-21, N51-22, N51-23, N51-24, N51-25, N51-26 |
|---|

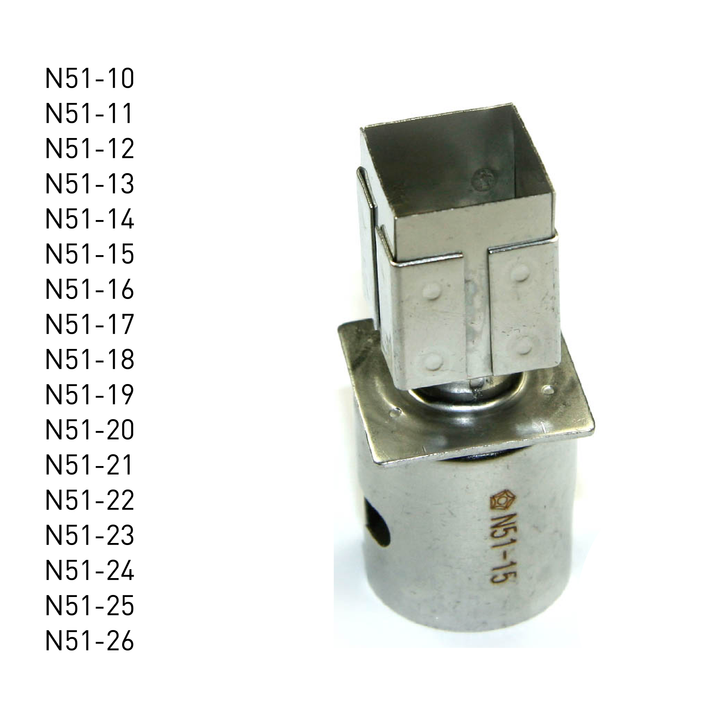

N51 BGA Nozzles
$208.00
