Description
Required Equipment for N2 System
| Part No | Product Name |
| FX-971 / FX-972 | Soldering Station |
|
FX-9702 FX-9704 |
N2 Soldering Iron |
|
T39 T50 |
Soldering Tip |
|
T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
| FX-780 / FX-781 | N2 Generator |
| FX-791 | N2 Flowmeter |
| - | Other Equipment* |
*Required regulator. filters. compressors etc are not available in Hakko's product line. It needs to be purchased separately.
Soldering Tip
T50 (not included. sold separately)
For an N2 System. a nozzle assembly is required for the soldering iron to function.
Both the Tip and the Nozzle Assemblies are sold separately.

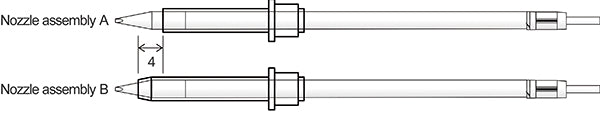

Nozzle Assembly B is 4mm longer than Nozzle Assembly A. Use Nozzle Assembly A when using the iron horizontally to prevent obstruction.
| Tip | Nozzle Assembly |
|

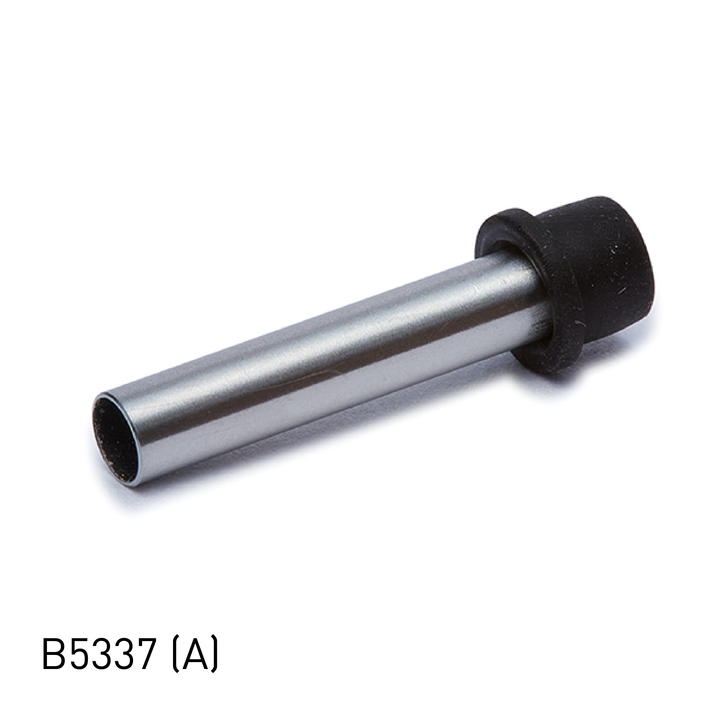

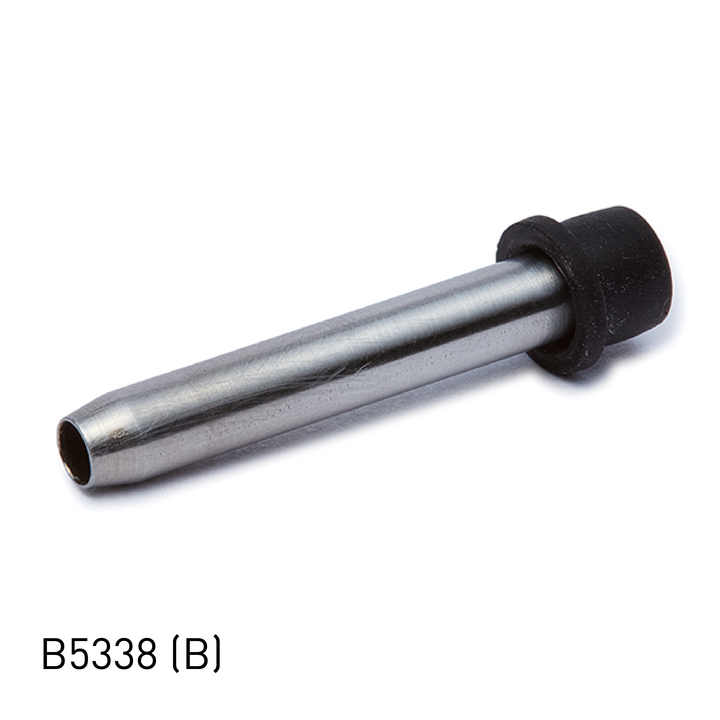

Either B5337 (A) or B5338 (B) |
|
B5337 (A) Only |
Additional Information
| Models |
B5337 (A), B5338 (B) |
|---|

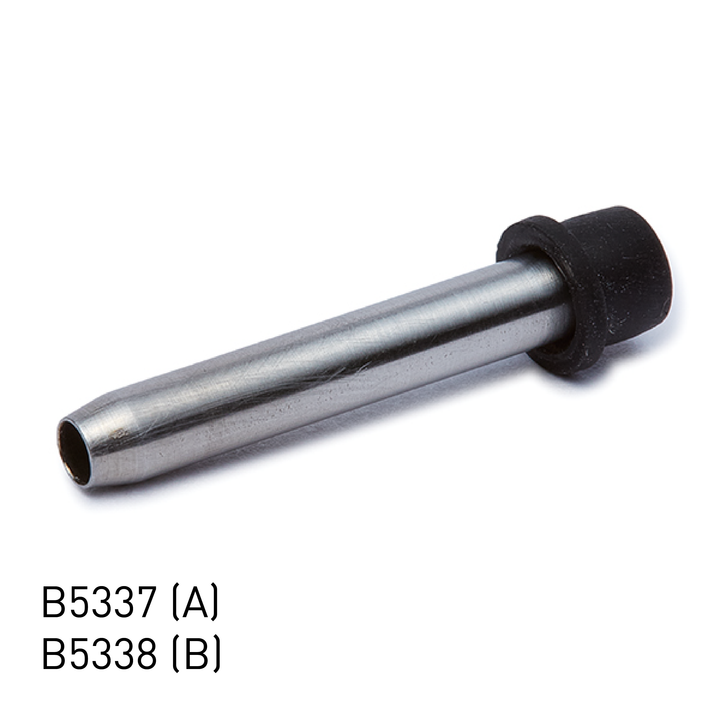

T50 Nozzle Assemblies
$173.00
